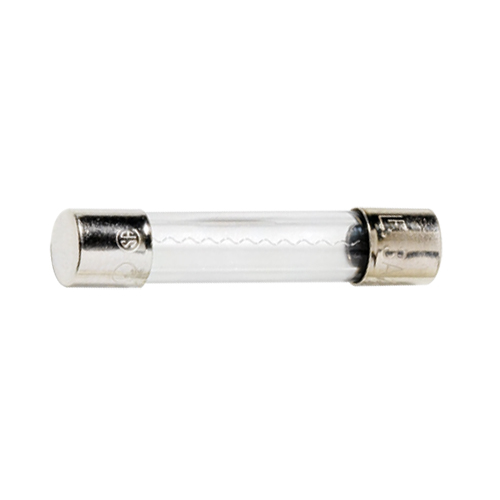

312 Series Fuse | 10A, 3AG, Lead Free


LITTELFUSE

Call For Pricing
Available to order
EDMO # 312010P
MFR Part # 312010P
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The 312 Series 3AG are Fast-Acting fuses that solve a broad range of application requirements while offering reliable performance and cost-effective circuit protection.

Version (EDMO# 312010P) is a 10 amp, 3AG, lead free fuse.

Features

  • In accordance with UL Standard 248-14
  • RoHS compliant and Lead-free
  • Cartridge style

Specifications

  • Dimensions:
    1.25 x 0.25 in.
  • Amperage:
    10A
  • Operating temperature:
    –55ºC to +125ºC
  • Thermal shock:
    MIL-STD-202, Method 107, Test Condition B: (5 cycles -65°C to +125°C)
  • Vibration:
    MIL-STD-202, Method 201
  • Humidity:
    MIL-STD-202, Method 103, Test Condition A: High RH (95%), and Elevated temperature (40°C) for 240 hours
  • Salt spray:
    MIL-STD-202, Method 101, Test Condition B

Product Codes

  • Mfr Part No
    312010P
