MS3112E12-3S Box Mounting Receptacle | Size 12 Shell, 16 AWG Solder Cup Sockets, 3 Position
Product Description
MS circular connectors meet the performance requirements of MIL-DTL-5051 specifications while providing cost-effective, well-proven electrical capabilities in critical equipment. MIL-DTL-5051 spec connectors feature threaded couplings and single key/keyway polarization to simplify installation and design.
Class E MIL-DTL-5051 spec connectors are designed with environmental resistance and strain relief for use in applications where the connector is exposed to moisture, vibration, and rapid changes in pressure and temperature.

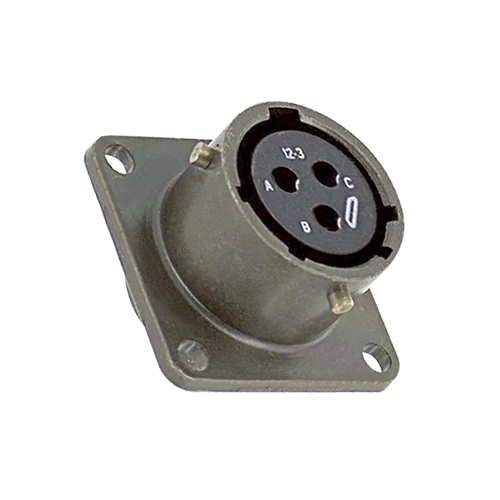

This MS3112 series box mounting receptacle (EDMO# 3112E123S) is a three-position, straight circular connector with a size 12 shell and 16 AWG solder sockets.
Features
- High-grade aluminum shell construction with electrically conductive cadmium-plated finish
- Silver-plated, copper alloy pin and socket material
- Neoprene inserts offer a high dielectric strength and arc resistance while resisting vibration
- Strain-relief clamp reduced tension at the solder connection providing a positive mechanical seal
- Completely field serviceable provided with the strain relief clamp
Specifications
Series:
MS 5015
Keyway:
5 Key/Keyway Polarization
Termination:
Solder
Wire Size:
16 AWG
Shell Size:
12
Number of Contacts:
3
Insertion Arrangement:
12-3
Mounting Type:
Flange
Voltage Rating:
1,000 VAC
Current Rating:
13A
Mounting Hole Diameter:
0.12 in
Product Codes
- Mfr Part No:MS3112E12-3S
- EDMO #:3112E123S
- Brand:COMM INNOVATIONS
- Category:Electrical Interconnect
- SCHEDULE B CODE:8525.60.1025
- SCHEDULE B CODE:8525.60.1025
