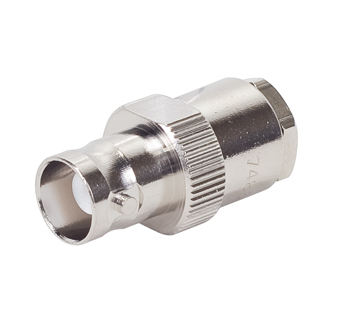

BNC Female Straight Clamp Jack | 50 Ohm

RF CONNECTOR/BNC female straight clamp jack for use with UG-89/U, RG-58, RG-142, RG-400, RG-188, 50 Ohm

AMPHENOL

Call For Pricing
In stock
EDMO # 31-5
MFR Part # 031-5
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

This BNC Female Straight Clamp Jack (EDMO# 31-5) is for use with RG-55/U, RG-55A/U, RG-55B/U, RG-58/U, RG-58A/U, RG-58B/U, RG-58C/U, RG-141/U, RG-141A/U, RG-142/U, RG-142A/U, RG-142B/U, RG-223/U, and RG-400/U coaxial cables.

Features

  • 50 ohms
  • Silver-plated, beryllium center contact
  • PTFE insulation material

Also Purchased

Specifications

  • Connector Type:
    BNC Female
  • Connector Body Style:
    Straight Jack
  • Coaxial Termination:
    Crimp
  • Impedance:
    50Ω
  • Frequency Range:
    DC to 4 GHz
  • Dielectric Withstanding Voltage:
    1500 VRMS (min)
  • Temperature Range:
    -65°C to 165°C
  • Body Material:
    Nickel Plated Brass
  • Contact Material:
    Silver Plated Beryllium Copper

Related Products

Product Codes

  • Mfr Part No
    031-5
  • ECCN
    EAR99
  • SCHEDULE B CODE
    8536.69.4010
