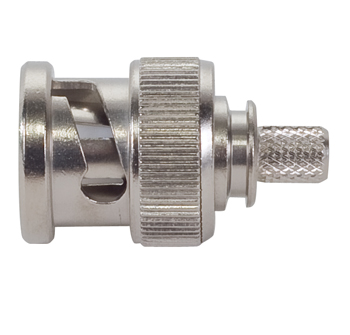

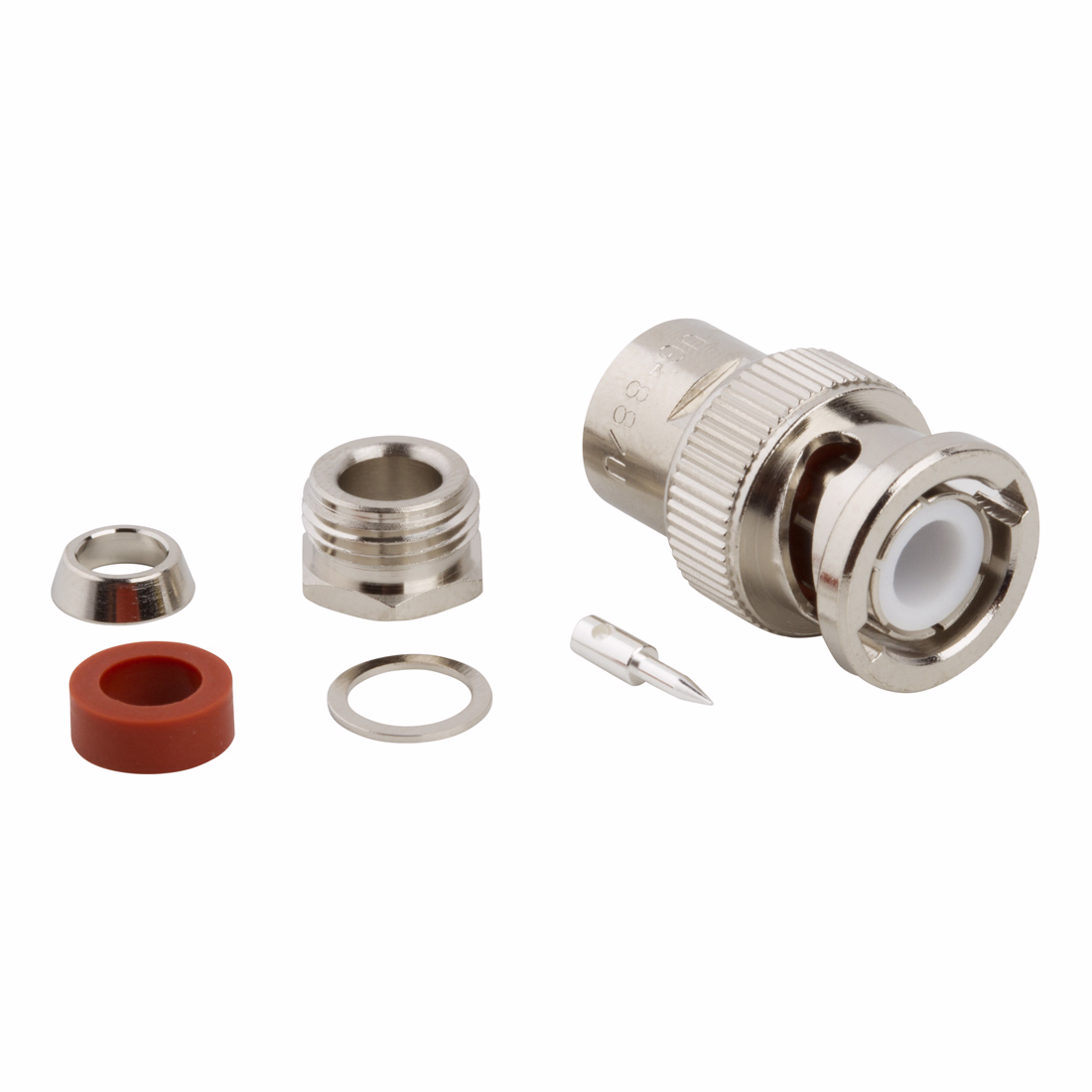

BNC Straight Clamp Plug | 50 Ohm, For RG-58, RG-141, RG-142, RG-400
Product Description
This BNC Straight Clamp Plug (EDMO# 31-2) is for use with RG-58, RG-58A, RG-58B, RG-58C, RG-141, RG-142, RG-400, Times LMR-195, Times LMR-200-LLPL, Belden 7806A, Belden 8219, Belden 8240, Belden 8259, Belden 8262, Belden 9201, Belden 9203, Belden 9310, and Belden 9311 coaxial cables.
Features
50 ohms
Silver-plated, brass contact
PTFE insolation material
Specifications
Weight:
13 g
Connector Type:
BNC Male
Connector Orientation:
Straight
Cable Type:
RG-58, RG-58A, RG-58B, RG-58C, RG-141, RG-142, RG-400, Times LMR-195, Times LMR-200-LLPL, Belden 7806A, Belden 8219, Belden 8240, Belden 8259, Belden 8262, Belden 9201, Belden 9203, Belden 9310, Belden 9311
Termination Type:
Clamp
Impedance:
50 Ω
Frequency Range:
DC to 4 GHz
Dielectric Withstanding Voltage:
1500 VRMS
Operating Temperature:
-65 ºC to 165 ºC
Durability:
500 Cycles
Body Finish:
Nickel
Body Material:
Brass
Contact Finish:
Silver
Contact Material:
Brass
Insulator Material:
PTFE
Product Codes
- Mfr Part No:031-2
- EDMO #:31-2
- Brand:AMPHENOL
- Category:Electrical Interconnect
- ECCN:EAR99
- SCHEDULE B CODE:8536.69.4010
