C‑Band Omni‑Directional 1/4‑Wave Antenna | 4.0–8.0 GHz
Product Description

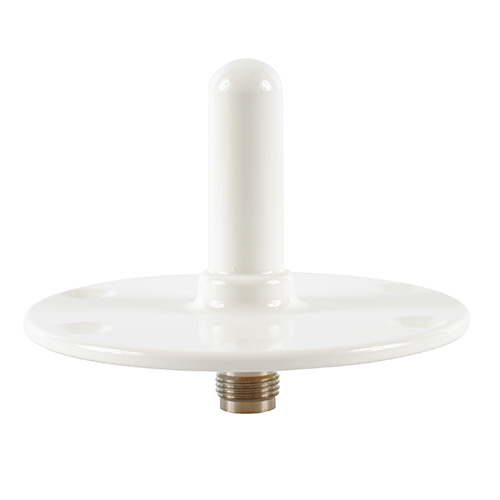

This C‑Band omni‑directional aircraft antenna is a 1/4‑wave, vertically polarized radiator designed for broadband operation across the 4.0–8.0 GHz frequency spectrum. The antenna provides uniform azimuth coverage and stable electrical performance for avionics and aerospace RF systems requiring wideband C‑Band operation.
The antenna is matched to a 50‑ohm system impedance and maintains a maximum VSWR of 2.0:1 across the operating band, supporting efficient power transfer and minimized reflected power. Rated for up to 1 kW peak input power, it is suitable for high‑power transmission environments.
Engineered for aircraft installation, the antenna meets stringent FAA, RTCA, military, and environmental qualification standards, ensuring reliability under extreme temperature, vibration, shock, and exposure conditions.
Features
- Frequency Range: 4.0–8.0 GHz
- Polarization: Vertical
- Radiation Pattern: Omni‑Directional
- Electrical Length: 1/4‑Wave
- Impedance: 50 Ohms
- VSWR: 2.0:1 maximum
- Peak Power Handling: 1 kW
- FAA: TSO‑C139 / TSO‑C144
- RTCA: DO‑160D, DO‑228
- Military Standards: MIL‑STD‑810G, MIL‑C‑5541, MIL‑E‑5400, MIL‑I‑45208A
- SAE Environmental: J1455
Specifications
Weight:
<2 oz (57 g)
Dimensions:
0.5 in (12.7 mm) x 3.0 in (76 mm) x 1.70 in (43 mm)
Material:
6061-T6 aluminum alloy base
composite radome
impact, abrasion, UV, solvent, and skydrol resistance, fire retardant

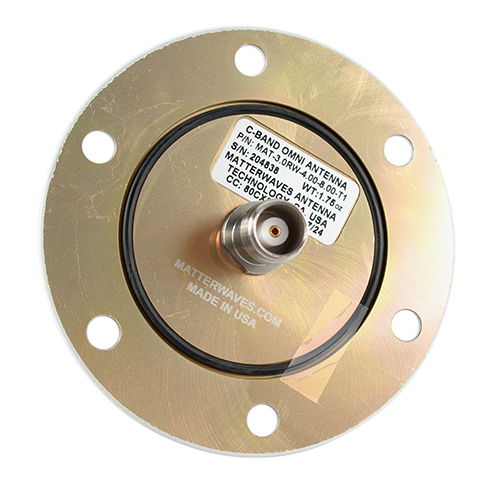

Connector:
TNC Female
Color:
gloss white
Frequency:
4,000 MHz – 6,000 MHz
Pattern:
Omnidirectional
Polarization:
Vertical
Antenna Gain:
1/4 Wave
VSWR:
2.0:1
Elevation Beam Width (3dB):
70°
Azimuth Beam Width (3dB):
360°
Output Impedance:
50Ω
Power Handling:
1 KW peak
Product Codes
- Mfr Part No:MAT-3.0RW-4.00-8.00-T1
- EDMO #:30RW48T1
- Brand:MATTERWAVES
