SSD120 Nano Altitude Encoder | RS-232 Output, MOD 1 , 30,000 ft
Product Description
The SSD120-(XX)N-RS232 Series Nano Altitude Encoders are all solid-state devices that measure air pressure and convert the measurements into the ICAO parallel data for pressure altitude transmission via ICAO pressure altitude Gray Code output. These Nano encoders also provide altitude data to ADS-B, GPS, transponders, autopilots, and other navigational devices with two asynchronous RS232 outputs for which the serial data protocol can be individually selected. The user has multiple resolution settings to choose from.

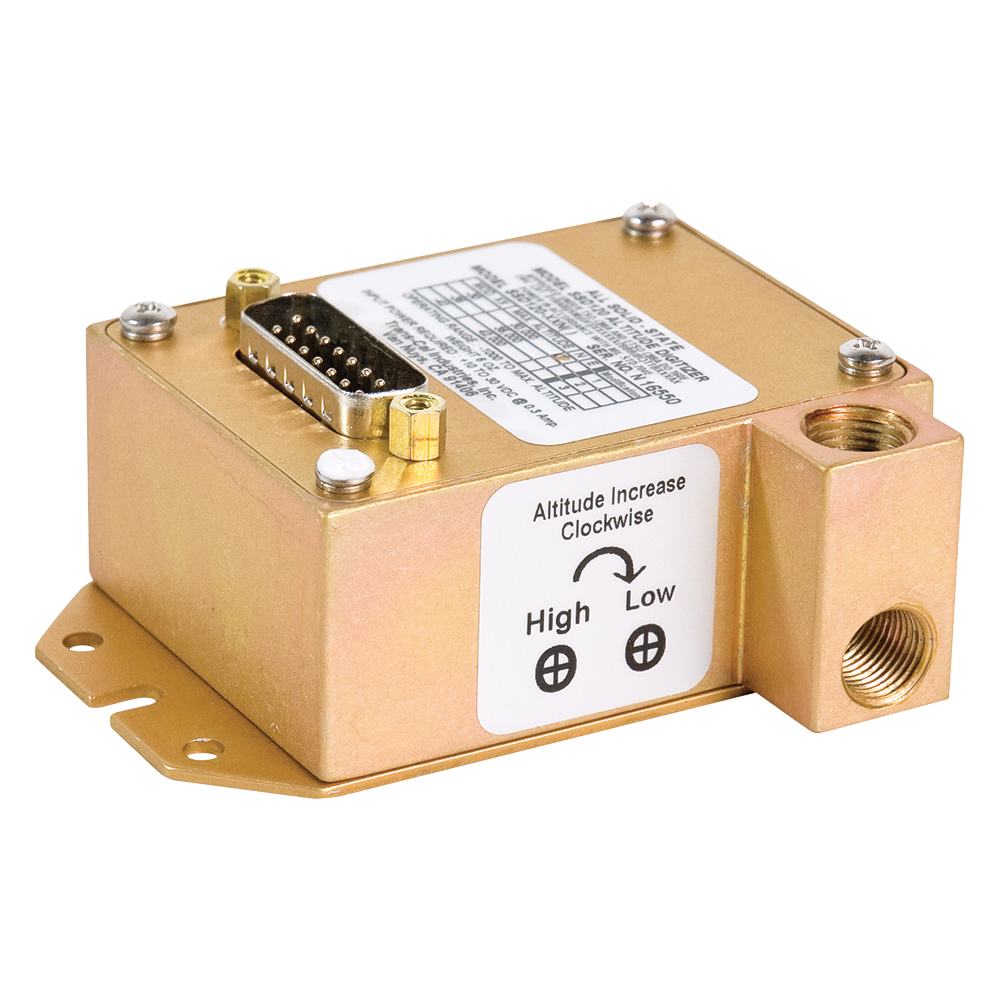

This Altitude Nano Encoder (EDMO# 30NRS232M1) is designed with a RS232 interface with MOD 1 for NARCO AT-5A, 6A, 50, 50A Transponders.
Features
Dual 1/8-27 NPT static port inlets
One ICAO pressure altitude Gray code output
Optional two or five RS-232 compliant data outputs
Serial ports may be installer configured to transmit separate data protocols (message and baud data)
Power, ground, and data I/O lines provided on industry standard D-miniature connectors
Constructed with corrosion-resistant aluminum housing
Specifications
Weight:
5.9 oz.
Operating Temperature:
-20°C to +70°C
Operating Altitude:
-1000' to +30,000'
Accuracy:
50 ft from -1000 ft to +30,000 ft
Operating Voltage:
14 or 28 VCD at 0.270 Amps
Product Codes
- Mfr Part No:SSD120-30N-RS232 M 1
- EDMO #:30NRS232M1
- Brand:TRANS-CAL INDUSTRIES
- Category:Transponders, Altitude Encoders & Serializers
- ECCN:7A994
- ETSO:C88A
- SCHEDULE B CODE:9014.20.6000
- TSO:C88A
