SSD120 Nano Altitude Encoder | 5 Asynchronous RS-232 channels, 30,000 ft
Product Description

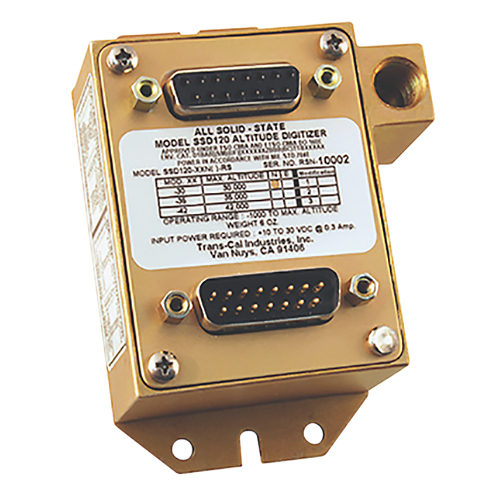

The SSD120-(XX)N-RS5 Series Nano Altitude Encoders are all solid-state devices that measure air pressure and convert the measurements into the ICAO parallel data for pressure altitude transmission via ICAO pressure altitude Gray Code output. These Nano encoders also provide altitude data to ADS-B, GPS, transponders, autopilots, and other navigational devices with five asynchronous RS232 outputs for which the serial data protocol can be individually selected. The user has multiple resolution settings to choose from. Typically, the altitude data is set to 100 feet or 10 feet.
Features
This Nano Altitude Encoder (EDMO# 30N-RS5) includes:
- -1,000 ft — 30,000 ft altitude range
- Altitude Digitizer with five RS232 output channels
- 15 Pin D-Subminiature Mating Connector (1 ea.)
- 15 Pin Connector Back Shell (2 ea.)
- 15 Pin D-subminiature mating connector plug (1 ea.)
- 1/8 NPT Nylon tube fitting (1 ea.)
- 1⁄4-inch Tube Polypropylene tee fitting (1 ea.)
- 1/8-27NPT Brass Plug (1 ea.)
Features:
- Dual 1/8-27 NPT static port inlets
- One ICAO pressure altitude Gray code output
- Optional two or five RS-232 compliant data outputs
- Serial ports may be installer configured to transmit separate data protocols (message and baud data)
- Power, ground, and data I/O lines provided on industry standard D-miniature connectors
- Constructed with corrosion-resistant aluminum housing
Specifications
Weight:
5.9 oz (low altitude)
6.3 oz (high altitude)
Altitude ceiling:
30,000 to 42,000 ft (low altitude)
50,000 to 100,000 ft (high altitude)
ICAO Gray Code output:
Yes
RS-232 output:
Yes (except for SSD120-(XX)N model)
RS-485 output:
No (except for SSD120(XX)N-RS model)
Operating voltage:
12VDC @ 220mA / 28VDC @ 270mA (low altitude)
12VDC @ 55mA / 28VDC @ 60mA (high altitude)
Low operating temperature:
-20°C / -55°C (E models)
High operating temperature:
70°C
Wet environment:
No
Electrical Connector:
D-Subminiature 15-pin, SSD120-(XX)N
D-Subminiature 15-pin & 9-pin, -RS232 (low/high models)
D-Subminiature 15-pin plug & 15-pin recpt, -RS models
Static line connection: Dual 1/8-27NPT (low altitude)
Dual 1/8-27NPT or 1/8 Tube Swivel Fitting (high altitude)
Approvals:
TSO-C88a
ETSO-C88a
MIL-STD-704E
RTCA DO-160E
Product Codes
- Mfr Part No:SSD120-30N-RS5
- EDMO #:30N-RS5
- Brand:TRANS-CAL INDUSTRIES
- Category:Transponders, Altitude Encoders & Serializers
