AIS 200B-35 20 Pole Switching Module

20 POLE SWITCHING UNIT

SANDIA AEROSPACE

Call For Pricing
In stock
EDMO # 306433-00
MFR Part # 306433-00
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

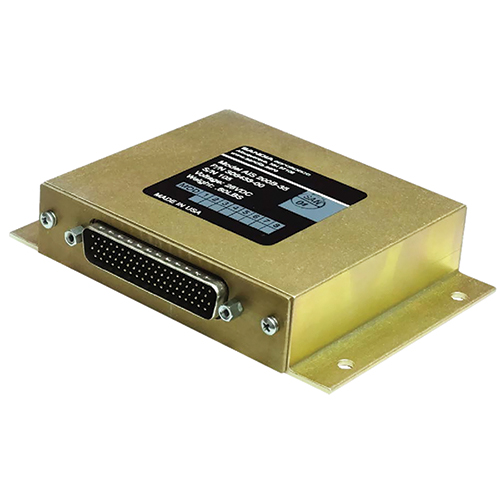

The AIS 200B-35 is a 20-pole, signal level, switching unit designed for use with NAV systems that share the aircrafts HSI/CDIs OBS functions. The contact switching rating is limited by the circuit board track current capacity to 1.0 amp. This unit has a revisionary relay which selects the LOC signal for display on the HSI/CDI whenever a LOC channel is selected in the NAV unit. This unit uses 10 relays in a series/parallel arrangement to provide the same 20 poles of switching. While model AIS 200B-35 is a direct fit and replacement for the AIS 200-35 and AIS 200A-35 models, installation of this AIS 200B-35 remains the same. Operates on 28 VDC.

Features

  • Provides 20 poles of signal-level switching, designed for use with NAV systems that share the aircraft’s HSI/CDI OBS functions.
  • Automatically selects the LOC signal for display on the HSI/CDI when a LOC channel is selected in the NAV unit, ensuring seamless operation.
  • Direct fit for AIS 200-35 and AIS 200A-35 models, with the same installation requirements, making upgrades easy.

Also Purchased

1 AMP FUSE

1 AMP FUSE

LITTELFUSE

Available to order

EDMO#: AGC-1

MFR#: 0AGC001.V

Call For Pricing

Specifications

  • Weight:
    0.60 lb
  • Dimensions:
    3.35 x 5.06 x 0.99 in
  • Operating Voltage:
    28 VDC
  • Current:
    175 mA
  • Operating Temperature:
    -20°C to 55°C
  • Operating Altitude:
    50,000 ft
  • Contact Rating:
    1.0 A @ 30 VDC
