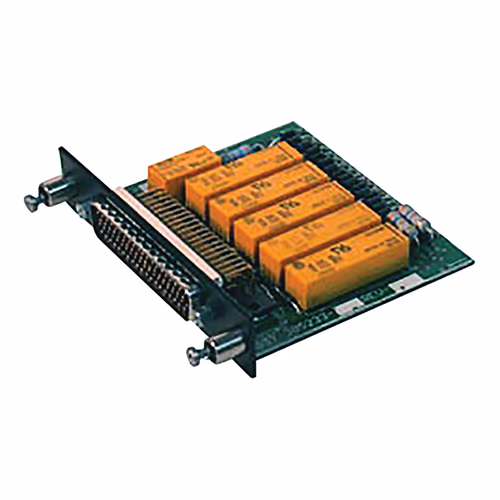

SR54-1 Switching Module | 5 Relay, 20 Pole Switching

306111-00

SANDIA AEROSPACE

CALL FOR PRICING
Out of Stock
EDMO#306111-00
MFR#306111-00

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

The SR54-1 switching relay provides 20 poles of switching through five hermetically sealed, bifurcated relays. The SR 54 has a built-in circuit that switches all relays to their de-energized condition whenever K6 is activated. This can be used for such applications as insuring LOC is presented on the HSI whenever a LOC signal is selected.

Features

  • 20 poles of switching
  • Hermetically sealed bifurcated relay
  • Gold plated contact relays
  • 2 amp resistive load rating at 28VDC
  • 120mA coil current

Specifications

Weight:
0.26 lb

Dimensions:
3.92 x 0.82 x 3.5 in.

Operating temperature:
-20ºC to 55ºC

Altitude:
50,000ft

Voltage:
28VDC

Current required:
120mA

Product Codes

  • Mfr Part No:306111-00
  • EDMO #:306111-00
  • Brand:SANDIA AEROSPACE
  • Category:Air Data & Fuel Flow
