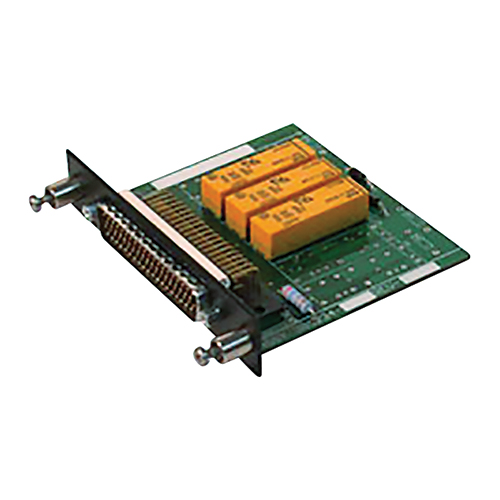

SR34-1 Switching Relay | 3 Relay, 12 Pole Switching
Product Description
The SR 34-1 provides 12 poles of switching through three, hermetically sealed, bifurcated relays. The relays contacts are gold plated and have a 2 amp load rating at 28 VDC. Coil current is 60 mA. Both the SR 34 and SR 64 use the same circuit card. Each relay is independently switched through their appropriate coil pins.
Features
- Certification: FAA-PMA Pending
- Pick up Voltage: 28VDC
- Nominal Coil Impedance: 60mA
- Max Contact Rating: 2A @ 28VDC Resistive Load
Specifications
Weight:
0.19 lb
Dimensions:
3.92 x 3.5 x 0.82 in
Operating Temperature:
-20°C to +55°C
Altitude:
50,000 ft
Voltage:
28 VDC
Current:
60 mA
Product Codes
- Mfr Part No:306110-00
- EDMO #:306110-00
- Brand:SANDIA AEROSPACE
- Category:Air Data & Fuel Flow
