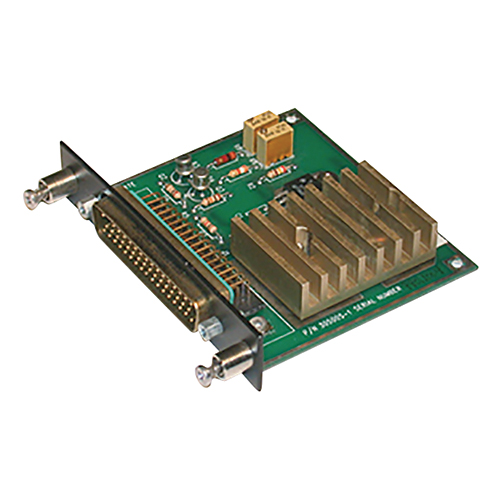

SA 3L Annunciator Driver | For LED Annunciators
Product Description
SANDIA Aerospace’s SA 3 and SA 3L provide the installer with a regulated voltage to drive external annunciator lamps when installing new avionics and accessory equipment. Designed to provide up to 12 outputs, the installer can adjust both the maximum and minimum brightness to match the existing annunciator lamps. The SA 3 and SA 3L are single circuit cards that can be installed in SANDIA Aerospace’s SRU-1 single card enclosure or in either the SRU-5 or the SRU-10 multi-card enclosures. They are certified to 55 thousand feet.
This SA 3L annunciator driver (EDMO# 305005-02) is compatible with LED Annunciators.
Features
- 0.5 Amp Continuous, 1 Amp Short Term (for annunciator test)
- Adjustable Voltage To Match Existing Annunciators Brightness for either incandescent or LED’s (SA 3L)
- Multiple Output Pins Eliminates Splices In Wiring Harness
- Tested to Meet or Exceed DO160D
- Easily Field Serviceable—Worldwide
- Backed By SANDIA Aerospace’s 3 Year Warranty
Specifications
Weight:
0.20 lb
Dimensions:
3.92 x 3.5 x 0.82 in
Voltage Rating:
28 VDC
Operating Temperature:
-55ºC to 70ºC
Altitude:
70,000 ft
Product Codes
- Mfr Part No:305005-02
- EDMO #:305005-02
- Brand:SANDIA AEROSPACE
- Category:Flight Systems
