SR 623 Switching Relay | Six Two-Pole Relays

Product Description

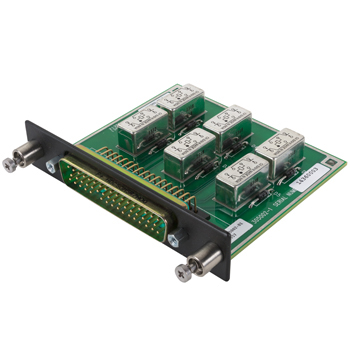

The SR 623 uses six, two pole hermetically sealed, gas filled relays to provide a total of twelve poles of switching. Relays are qualified to MIL-R-39016/6. For use with the MARC-70 Interface modules.

Specifications

• Weight:
  0.24 lb
• Dimensions:
  3.92 x 3.5 x 0.82 in.
• Voltage:
  28VDC
• Current requirement:
  250mA
• Altitude:
  70,000 ft
• Operating temperature:
  -55ºC to 70ºC
• Certification:
  FAA PMA
• Max Pick up Voltage:
  18VDC
• Min Drop Voltage:
  1.5VDC
• Max Contact Rating:
  2A @ 28VDC Resistive Load 0.75A @ 28VDC Inductive Load (200mH) 0.16A @ 28VDC Lamp Load

Product Codes

• Mfr Part No
  305002-01
• ECCN
  7A994
• MIL SPEC
  5999-01-534-0771
• NSN
  5999-01-534-0771
• PMA
  PQ0894SW
• SCHEDULE B CODE
  9014.20.8040

Documentation

• MARC-70 Brochure
