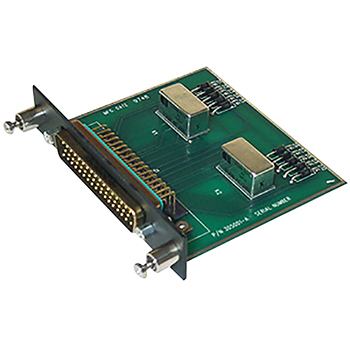

SR263 Switching Relay | Two Six-Pole Card for MARC-70

SR263 Switching Relay | Two Six-Pole Card for MARC-70

SANDIA AEROSPACE

Call For Pricing
In stock
EDMO # 305001-01
MFR Part # 305001-01
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The SR 263 uses two, six pole hermetically sealed and gas filled relays to provide a total of twelve poles of switching. Relays are qualified to MIL-R-39016/40. For use with MARC-70 interface module.

Features

  • Certification: FAA PMA
  • Max Pick up Voltage: 18VDC
  • Nominal Coil Impedance: 390 W
  • Max Contact Rating: 2A @ 28VDC Resistive Load
  • .75A @ 28VDC Inductive Load (200mH)
  • .25A @ 28VDC Lamp Load

Also Purchased

Specifications

  • Weight:
    0.16 lb
  • Dimensions:
    0.82 x 3.92 x 3.5 in

Related Products

Product Codes

  • Mfr Part No
    305001-01
  • ECCN
    7A994
  • MIL SPEC
    5999-01-534-0764
  • NSN
    5999-01-534-0764
  • PMA
    PQ0894SW
  • SCHEDULE B CODE
    9014.20.8040
