2TC14 Series Circuit Breaker | 5 Amp Rating

Select an option

KLIXON

Call For Pricing

In stock

EDMO # 2TC14-5

MFR Part # 2TC14-5

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The 2TC14 series single-phase circuit breakers provide reliable state-of-the-art circuit protection for aerospace power systems. The compact and lightweight design makes these circuit breakers well suited for aircraft avionics and electronic systems. The 2TC series ratings is coordinated so any rating will trip before another rating twice its capacity in the event of a fault. Ambient temperature compensation allows the 2TC circuit breakers to operate where temperatures exceeds the 160°F maximum of non–ambient compensated thermal circuit breakers and may also operate in temperatures as high as 150°F without derating the circuit breaker while eliminating the need for added cooling.

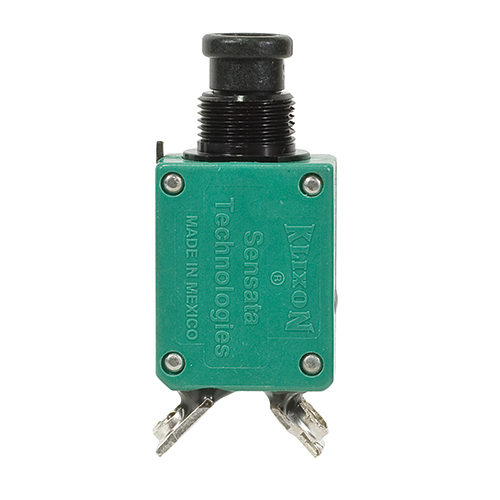

This 2TC14 circuit breaker (EDMO# 2TC14-5) is rated for 5 amps.

Includes hardware.

Features

Compact size and weight
Trip-free design
1 to 25 Amp current rating
High vibration resistance
High interrupting capacity up to 6,000 amps at 28 VDC and 3,500 amps at 120 VAC, 400 Hz
Typically used on aircraft power distribution systems
AS58091 qualified as well as military approvals, and FAA PMA

Also Purchased

Specifications

Weight:

24 g, maximum
Current Rating:

5 Amps
Vibration:

10G minimum, 50 - 500 Hz
Mechanical Shock:

50G
Acceleration:

10G
Interrupt Current:

1–20 amps: 6,000 amps at 28 VDC 25 amps: 1,625 amps at 28 VDC 1–15 amps: 2,500 amps at 120 VAC, 400 Hz 20 amps: 2,000 amps at 120 VAC, 400 Hz 25 amps: 1,800 amps at 120 VAC, 400 Hz
Endurance:

2,500 cycles: 120 VAC, 400 Hz inductive 5,000 cycles: 120 VAC, 400 Hz resistive 2,500 cycles: 30 VDC inductive 5,000 cycles: 30 VDC resistive 10,000 cycles: Mechanical, no load
Operating Altitude:

70,000 ft
