NYLO-Seal Bulkhead Union | Fits 1/4in Tubing

SEAL PLASTICS INC

Call For Pricing

In stock

EDMO # 282N04

MFR Part # 282N04

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

NYLO-Seal Nylon Bulkhead Unions have excellent resistance to acids, alkalis, dilute mineral acids, most organic acids, petroleum oils and greases, and photographic solutions. Installation time is reduced with NYLO-Seal fittings when compared to regular compression or flare fittings. Also, stress on the tubing is relieved during installation as the nut revolves around the sleeve as it is being tightened, which prevents torque from being transmitted to the tubing, to provide an excellent seal and ensures reliability. NYLO-Seal Nut & Sleeves are made of molded nylon to be strong and resistant to abuse, and the acetal copolymer sleeves provide maximum performance. They can continuously operate at temperatures of 200°F and intermittently at temperature as high as 250°F. NYLO-Seal fittings are excellent for instrument, lubricant, air, hydrocarbon fuel, oil coolant, low pressure hydraulic lines, laboratory, and chemical applications.

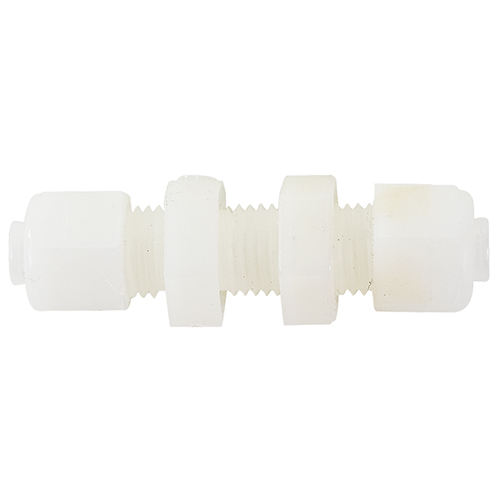

This NYLO-Seal bulkhead union (EDMO# 282N04) fits 1/4-inch tubing.

Features

Excellent resistance to chemicals
Reduces installation time
Eliminates stress on plastic tubing during installation
Exceptionally strong and resistant to abuse
Continual Operation at temperatures as high as 200°F
Couples most types of thermoplastic tubing
Excellent for instrument, lubricant, air, hydrocarbon fuel, oil coolant, low pressure hydraulic lines, laboratory, and chemical applications

Also Purchased

Specifications

Type:

Tube to Tube
Tube Size:

1/4 in O.D. (282N04)
Maximum Working Pressure:

250 PSI
Materials:

Molded Nylon Bodies and Nuts. Acetal Copolymer Sleeves (Celcon®)
Compatible Tubing:

NYLO-SEAL fittings can be used to couple to most types of thermoplastic tubing
