MS27212-2 Terminal Block | 5 Studs

MS27212-2 Terminal Block | 5 Studs

EDMO DISTRIBUTORS, INC

Call For Pricing
Available to order
EDMO # 27212-2-5
MFR Part # MS27212-2-5
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

Terminal blocks are molded in high quality, dimensionally stable DAP thermoset material which provides excellent dielectric strength – even at temperatures and in moist environments. Then can be cut to length to accommodate any job.

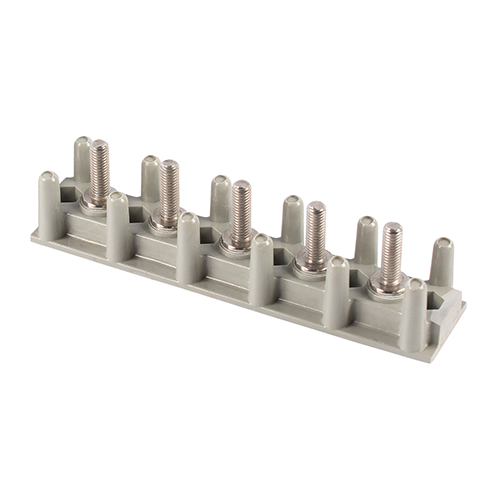

This terminal block (EDMO# 27212-2-5) has 5 mounting studs with 10/32-inch 28UNF-2A/8 thread size.

Features

  • Constructed of diallyl isophalate plastic (per Federal standard GDI-20F and MIL-M-14)
  • 425°F to 500°F maximum operating temperature
  • Compatible with MS180029 terminal block covers and MS25226 bus bars

Also Purchased

Specifications

  • Number of Studs:
    5
  • Stud Spacing:
    0.75 in
  • Stud Thread Size/Max:
    10/32-inch 28UNF-2A/8

Related Products

Product Codes

  • Mfr Part No
    MS27212-2-5
  • ECCN
    ear99
  • SCHEDULE B CODE
    8536.69.4030
