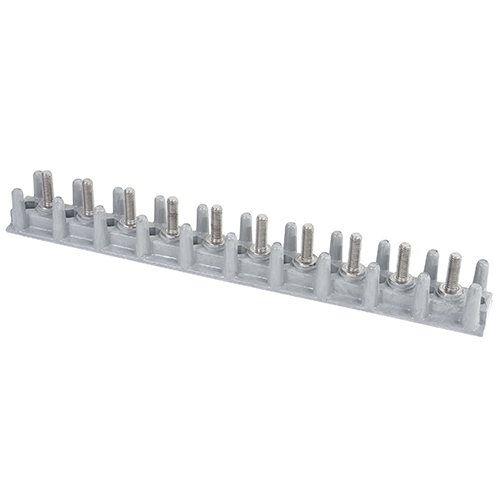

MS27212-2 Terminal Block | 10 studs

MS27212-2 Terminal Block | 10 studs

EDMO DISTRIBUTORS, INC

Call For Pricing

Available to order

EDMO # 27212-2-10

MFR Part # MS27212-2-10

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

Terminal blocks are molded in high quality, dimensionally stable DAP thermoset material which provides excellent dielectric strength – even at temperatures and in moist environments. Then can be cut to length to accommodate any job.

This terminal block (EDMO# 27212-2-10) has 10 mounting studs with 10/32-inch 28UNF-2A/8 thread size.

Features

Constructed of diallyl isophalate plastic (per Federal standard GDI-20F and MIL-M-14)
425°F to 500°F maximum operating temperature
Compatible with MS180029 terminal block covers and MS25226 bus bars

Also Purchased

Specifications

Number of Studs:

10
Stud Spacing:

0.75 in
Stud Thread Size/Max:

10/32-inch 28UNF-2A/8

Product Codes

Mfr Part No

MS27212-2-10
MIL SPEC

MS27212-2-10
ECCN

EAR99
MIL SPEC

MS27212-2-10
SCHEDULE B CODE

8536.69.4030
