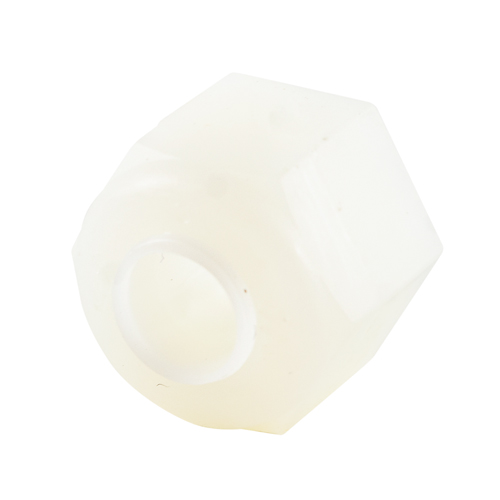

NYLO-Seal Nut & Sleeve Assembly | Fits 1/4-inch Tubing
Product Description
NYLO-Seal Nylon Nut & Sleeve Assemblies have excellent resistance to acids, alkalis, dilute mineral acids, most organic acids, petroleum oils and greases, and photographic solutions. Installation time is reduced with NYLO-Seal fittings when compared to regular compression or flare fittings. Also, stress on the tubing is relieved during installation as the nut revolves around the sleeve as it is being tightened, which prevents torque from being transmitted to the tubing, to provide an excellent seal and ensures reliability. NYLO-Seal Nut & Sleeves are made of molded nylon to be strong and resistant to abuse, and the acetal copolymer sleeves provide maximum performance. They can continuously operate at temperatures of 200°F and intermittently at temperature as high as 250°F. NYLO-Seal fittings are excellent for instrument, lubricant, air, hydrocarbon fuel, oil coolant, low pressure hydraulic lines, laboratory, and chemical applications.
These Nylon Nut & Sleeve Assembly (EDMO# 261N04) couples together most types of thermo plastic tubing having an outside diameter of 1/4 inch.
Features
- Excellent resistance to chemicals
- Reduces installation time
- Eliminates stress on plastic tubing during installation
- Exceptionally strong and resistant to abuse
- Continual Operation at temperatures as high as 200°F
- Couples most types of thermoplastic tubing
- Excellent for instrument, lubricant, air, hydrocarbon fuel, oil coolant, low pressure hydraulic lines, laboratory, and chemical applications
Specifications
Tube Size:
Fits 1/4 in Tubing (261N04)
Maximum Working Pressure:
250 PSI
Materials:
Molded Nylon Bodies and Nuts. Acetal Copolymer Sleeves (Celcon®)
Compatible Tubing:
NYLO-SEAL fittings can be used to couple to most types of thermoplastic tubing
Product Codes
- Mfr Part No:261-N04
- EDMO #:261N04
- Brand:SEAL PLASTICS INC
- Category:Pitot Static Components
- ECCN:EAR99
- SCHEDULE B CODE:3917.40.0000
