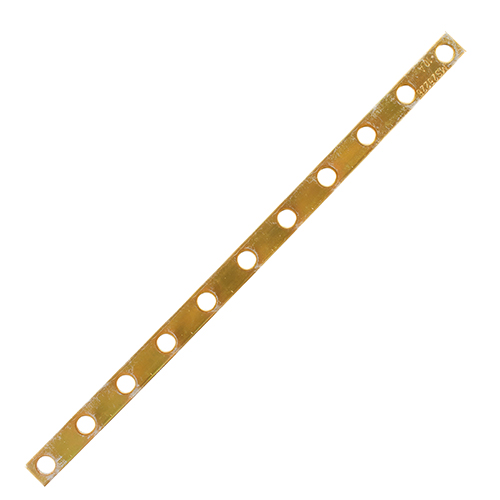

25226-10A Series Bus Bar | 11 Hole, #10 Size, 0.750-inch Spacing
Product Description
The 25226-10A series terminal block bus bars are designed to be used with the MS27212 terminal blocks. They consist of parallel plates of conductors bonded together and separated by a thin layer of insulation to provide low inductance, high capacitance, and ease of assembly. Ideal for system integration where high power switching, such as IGBTs, is involved.
This bus bar (EDMO# 2522610A11) connects to terminal blocks with eleven, #10 sized holes with a 0.750 hole spacing from center to center. It is also made of cadmium-plated copper.
Features
- MS25226-10 series bus bars
- May be cut to length to meet specific applications
- Cadmium-plated copper
Specifications
Number of Holes:
11
Hole Diameter:
0.174 in
Hole Spacing:
0.750 in, center to center
Material:
Cadmium Plated Copper
Product Codes
- Mfr Part No:MS25226-10A-11
- EDMO #:2522610A11
- Brand:EDMO DISTRIBUTORS, INC
- SCHEDULE B CODE:8536.69.4030
