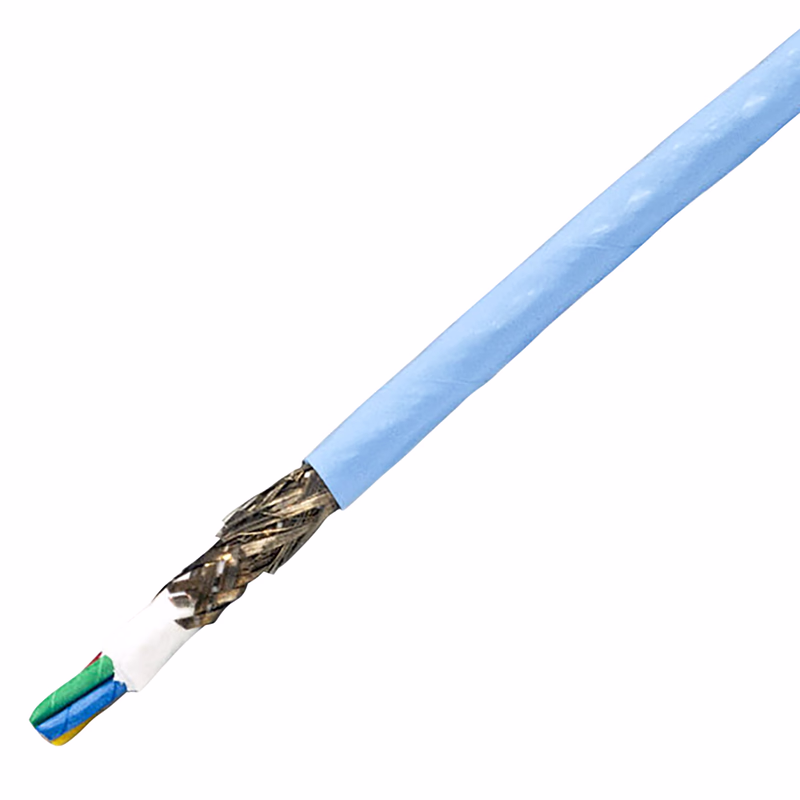

NETflight 100 Base-T Ethernet Cable | 24AWG, 0.0223in Conductor Diameter, Shielded Quad
Product Description
NETflight® 100 Base-T Ethernet cables with quad construction feature our advanced LTE extruded expanded PTFE dielectric, which increases the velocity of propagation. Its small size, light weight, and high flexibility make it an ideal choice for a wide variety of tight bend radius Ethernet applications.
This NETflight 100 Base-T ethernet cable (EDMO# 24Q100-01) is constructed with 24 AWG conductor wires, conductor diameter of 0.0223 inch, and a nominal weight of 24.5 lb/1000ft (37 kg/1000m).
Features
Support 10/100 Base-T Ethernet, ARINC 629 & 664 and Category 5e applications to defined distances
Stable performance to a wide bandwidth up to 100 MHz
Enhanced shielding for severe EMI environments
Operating temperature -55 °C to 200 °C
Excellent resistance to aircraft fluids
Meet FAR 25.853 flammability requirements
Meet Boeing & Airbus smoke and toxicity requirements
Specifications
Impedance:
100Ω
Velocity of Propagation:
78%
Capacitance (pF/ft)
13
Attenuation @ 100m:
8 dB/100ft, nom.
9.2 dB/100ft, max.
NEXT:
35 dB
SRI:
16 dB
Nom. Weight lb/1000ft (kg/1000m):
24.4 (37)
Nominal Size (mm):
0.160 in (4.06 mm)
AWG:
24
Bend Radius:
1.60 in (40.6 mm)
Operating Temperature:
-55°C to 150°C
Meets FAR 25.853 Flammability Requirements
Meets FAR 25.853 Flammability Requirements
Conductor Material:
SCCA
Conductor Diameter:
0.0223 in
Insulation Material:
PTFE
Insulation Diameter:
0.045 in
Twister Pairs:
Red/Blue & Yellow/Green
Product Codes
- Mfr Part No:NF24Q100-01
- EDMO #:24Q100-01
- Brand:EDMO DISTRIBUTORS, INC
- Category:Wire, Cable & Accessories
- ECCN:EAR99
- SCHEDULE B CODE:8544.11.0050
