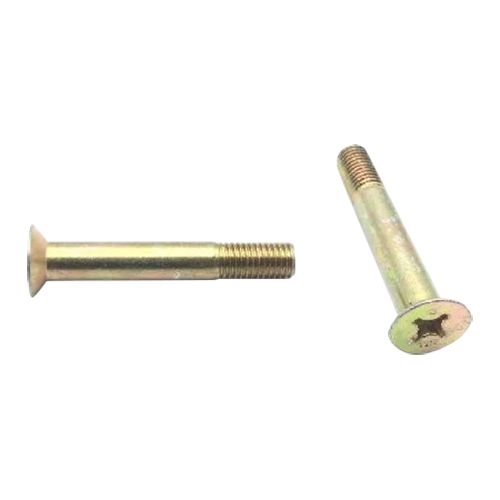

MS24694S113 Phillips Countersunk Screw | 1.688 in. Length, 1/4-28 Threads
Product Description
MS24694-S Series countersunk screws feature a 100 degree flat head and are made of a cadmium plated steel material that has been heat treated providing additional hardness.
This Phillips head countersunk screw (EDMO# 24694-S113) has a length of 1.688-inch and a 1/4-28 thread size.
Features
- Machined steel construction
- Cadmium yellow plating
- Flat Countersunk Phillips head
- MS24694S113 Mil-Spec
Specifications
Thread Class:
3a
Thread Direction:
Right-hand
Thread Length:
0.429 – 0.578 in
Fastener Length:
1.641 — 1.688 in
Head Style:
Flat countersunk
Head Diameter:
0.447 — 0.507 in
Internal Drive Style:
Cross recess type 1
Nominal Thread Diameter:
0.250 in
Thread Quantity Per Inch:
28
Minimum Tensile Strength:
125000 lb/sq. in
Countersink Angle:
99° — 101.0°
Screw Material:
Steel
Screw Surface Treatment:
Cadmium and Chromate
Thread Series Designator:
UNC
Product Codes
- Mfr Part No:MS24694-S113
- EDMO #:24694-S113
- Brand:BILD INDUSTRIES
- Category:Hardware
