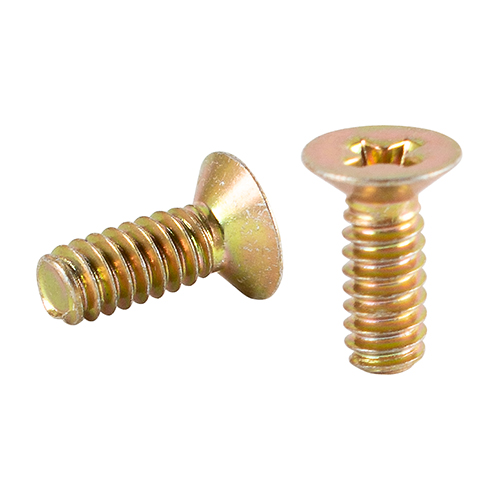

MS24693S2 Phillips Flat Head Countersunk Screw | 1/4 in. Length, 4-40 Threads

Product Description

MS24693S Series countersunk screws feature a 100 degree flat head and are made of cadmium plated carbon steel material.

This Phillips head countersunk screw (EDMO# 24693S2) has a length of 1/4-inch and a 4-40 thread size.

Thread Class:
2a

Thread Direction:
Right-hand

Thread Length:
0.25 in

Fastener Length:
0.25 in

Head Style:
Flat countersunk

Head Diameter:
0.191 – 0.225 in

Internal Drive Style:
Cross recess type 1

Nominal Thread Diameter:
0.112 in

Thread Quantity Per Inch:
40

Minimum Tensile Strength:
60000 lb/sq. in

Countersink Angle:
99° – 101.0°

Screw Material:
Steel comp 1010

Screw Surface Treatment:
Cadmium and chromate

Thread Series Designator:
UNC
