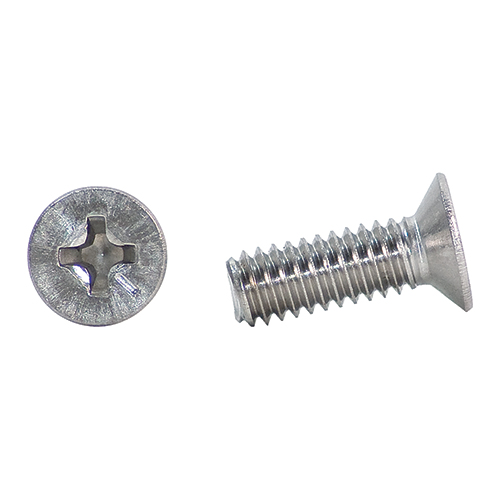

MS24693C50 Phillips Flat Head Countersunk Screw | 1/2 in. Length, 8-32 Threads

Product Description

MS24693C Series countersunk screws feature a 100 degree flat head and are made of stainless steel material.

This Phillips head countersunk screw (EDMO# 24693C50) has a length of 1/2-inch and a 8-32 thread size.

Specifications

• Thread Class:
  2a
• Thread Direction:
  Right-hand
• Thread Length:
  0.5 in
• Fastener Length:
  0.5 in
• Head Style:
  Flat countersunk
• Head Diameter:
  0.285 – 0.332 in
• Internal Drive Style:
  Cross recess type 1
• Nominal Thread Diameter:
  0.164 in
• Thread Quantity Per Inch:
  32
• Minimum Tensile Strength:
  80000 lb/sq. in
• Countersink Angle:
  99° – 101.0°
• Screw Material:
  Stainless Steel
• Thread Series Designator:
  UNC

Product Codes

• Mfr Part No
  MS24693C50
• MIL SPEC
  MS24693C50
• ECCN
  EAR99
• MIL SPEC
  MS24693C50
• SCHEDULE B CODE
  7408.29.0000
