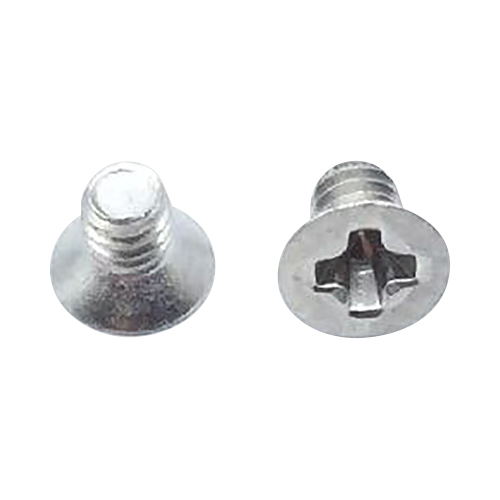

MS24693C16 Phillips Flat Head Countersunk Screw | 1/8 in. Length, 2-56 Threads

Product Description

MS24693C Series countersunk screws feature a 100 degree flat head and are made of stainless steel material.

This Phillips head countersunk screw (EDMO# 24693C16) has a length of 1/8-inch and a 2-56 thread size.

Thread Class:
2a

Thread Direction:
Right-hand

Thread Length:
0.088 in

Fastener Length:
0.125 in

Head Style:
Flat countersunk

Head Diameter:
0.143 – 0.172 in

Internal Drive Style:
Cross recess type 1

Nominal Thread Diameter:
0.086 in

Thread Quantity Per Inch:
56

Minimum Tensile Strength:
80000 lb/sq. in

Countersink Angle:
99° – 101.0°

Screw Material:
Stainless Steel

Thread Series Designator:
UNC
