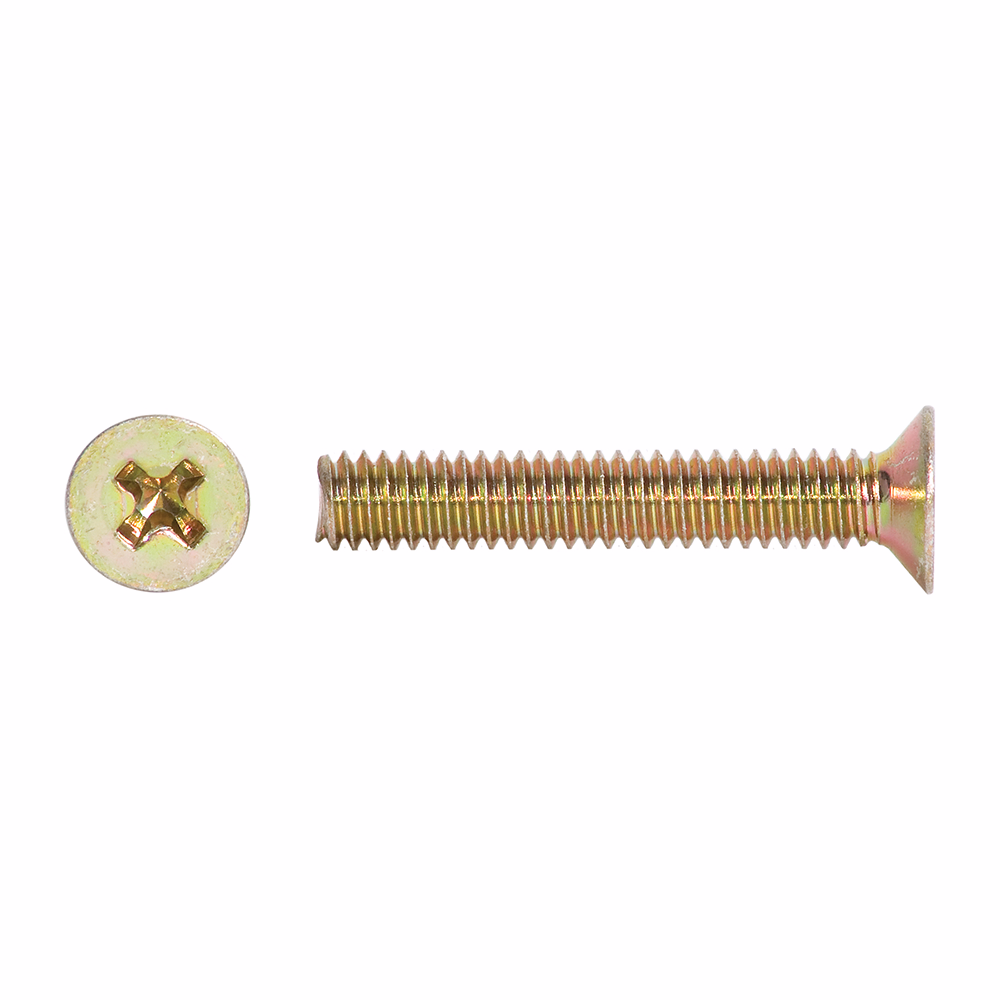

MS24693-S54 Phillips Flat Head Countersunk Screw | 1 in. Length, 8-32 Threads

Product Description

MS24693C Series countersunk screws feature a 100 degree flat head and are made of cadmium plated carbon steel material.

This Phillips head countersunk screw (EDMO# 24693-S54) has a length of 1-inch and a 8-32 thread size.

Thread Class:
2a

Thread Direction:
Right-hand

Thread Length:
0.938 – 1.000 in

Fastener Length:
1 in

Head Style:
Flat countersunk

Head Diameter:
0.191 – 0.225 in

Internal Drive Style:
Cross recess type 1

Nominal Thread Diameter:
0.164 in

Thread Quantity Per Inch:
32

Minimum Tensile Strength:
60000 lb/sq. in

Countersink Angle:
99° – 101.0°

Screw Material:
Cadmium Plated Carbon Steel

Thread Series Designator:
UNC
