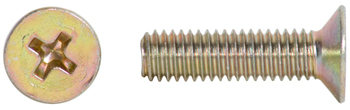

MS24693S274 Phillips Flat Head Countersunk Screw | 3/4 in. Length, 10-32 Threads

Product Description

MS24693S Series countersunk screws feature a 100 degree flat head and are made of cadmium plated carbon steel material.

This Phillips head countersunk screw (EDMO# 24693S272) has a length of 1/2-inch and a 10-32 thread size.

Thread Class:
2a

Thread Direction:
Right-hand

Thread Length:
0.688–0.75 in

Fastener Length:
0.75 in

Head Style:
Flat countersunk

Head Diameter:
0.333 – 0.385 in

Internal Drive Style:
Cross recess type 1

Nominal Thread Diameter:
0.190 in

Thread Quantity Per Inch:
32

Minimum Tensile Strength:
55000 lb/sq. in

Countersink Angle:
99° – 101.0°

Screw Material:
Steel comp 1010

Screw Surface Treatment:
Cadmium

Thread Series Designator:
UNF
