1921 Tachometer Tester | 230V

230440-3

IDEAL AEROSMITH

CALL FOR PRICING
Special order
EDMO#230440-3
MFR#1921-230V

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

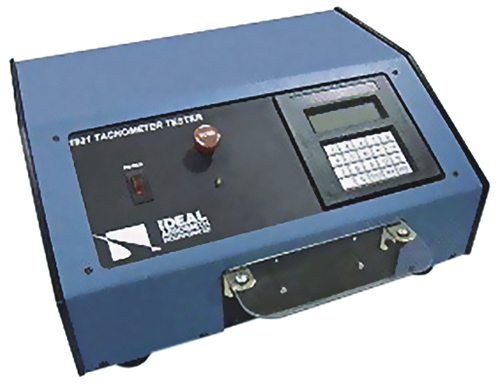

The Model 1921 Tachometer Tester is used for the testing and calibration of electrical and mechanical tachometer generators and indicators, specifically handheld models.  Two variable-speed brushless motors eliminate the need for gears while providing for a testing range of 10 to 50,000 RPM. Each motor/shaft is controlled by a closed-loop system utilizing hall/encoder feedback and a digital motion control card. The result is a very reliable system with a speed accuracy of 0.005%.

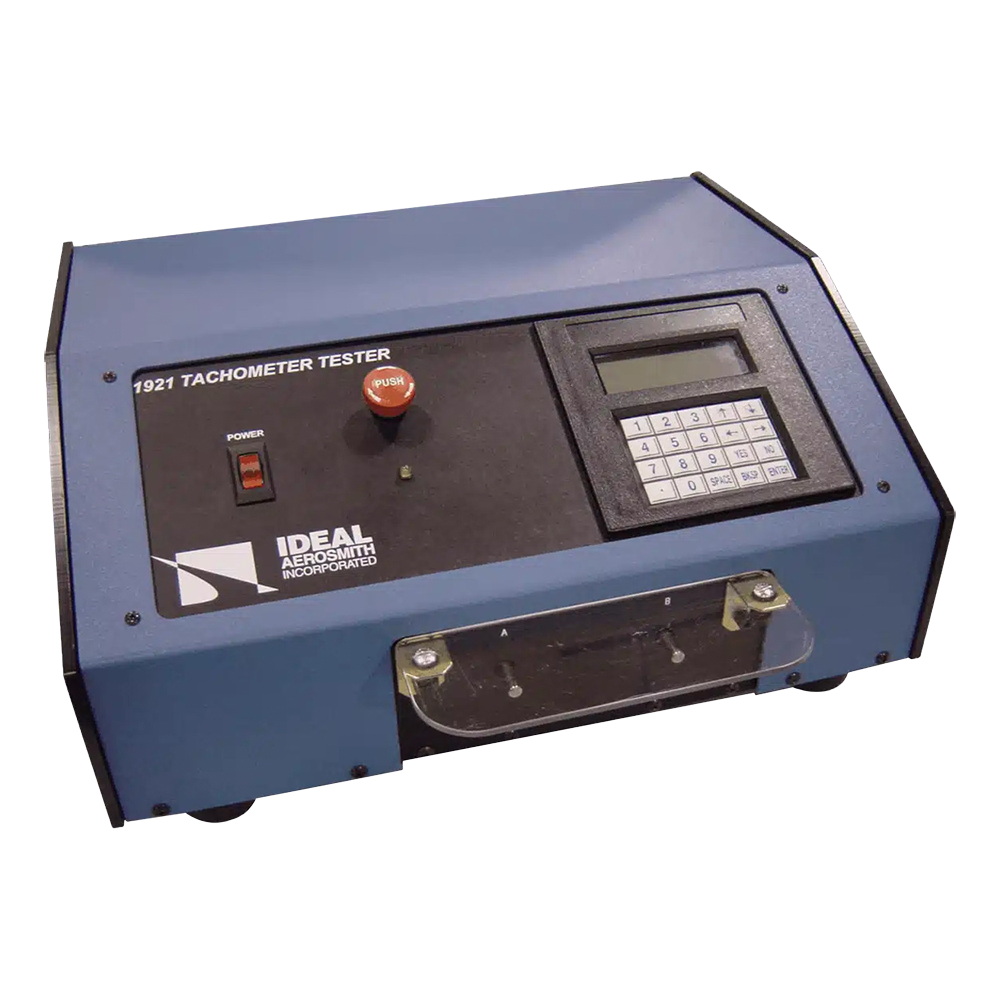

The control panel consists of an LCD backlit display with keypad entry, illuminated power switch, emergency stop button, and a shaft rotating indicator.

This 1921 Tachometer Tester (EDMO# 230440-3) is a 230V unit.

Features

  • 10 to 50,000 RPM actual drive speed

  • High accuracy

  • 0.01 display resolution

  • Direct drive

  • Bidirectional

  • Keypad entry with LCD display

Specifications

Weight:
35 lbs. (16 kg)

Dimensions:
15.7 x 14.7 x 7 in

Drive Type:
Direct Drive Brushless Servo

Number of Drives:
2

Drive Outlet:
0.25-inch Diameter

Shaft Speed Range:
Total Range: 10–50,000 RPM Bi-directional
Shaft A Range: 10–5,000 RPM
Shaft B Range: 5,000–50,000 RPM

Digital Display:
RS-232

Digital Display Accuracy:
0.1% (10–199.99 RPM), 0.005% (200–50,000 RPM)

Digital Display Units:
RPM, Inches/Min, Feet/Min, Yards/Min, Meters/Min

Digital Display Resolution:
0.01 for all displayed units

Shaft Speed Stability:
0.1% (10–199.99 RPM), 0.005% (200–50,000 RPM)

Power Requirements:
115VAC, 50-60 Hz, 6.25A; 230VAC Optional

Operating Environment:
Temperature: 67º to 79ºF (19° to 26°C)
Relative Humidity: 20% to 50%

Storage Environment:
Temperature: -40º to 160ºF (-40° to 71°C)
Relative Humidity: 0% to 100% non-condensing

Shipping Environment:
Temperature: -40º to 160ºF (-40°to 71°C)
Relative Humidity: 0% to 100% non-condensing
Altitude Maximum: 15,000 ft (4,572 m)

Protective Shield:
Polycarbonate shield mounted above motor shafts

Front Panel Controls:
Illuminated Power Switch, Keypad/Display, Emergency Stop, and Shaft Rotating Indicator

Adapter Wheels:
60° Cone Wheel, 90° Cone Wheel, 60° Countersunk, 90° Countersunk, Linear Speed, Photoelectric

Recommended Calibration Interval:
1 Year

Product Codes

  • Mfr Part No:1921-230V
  • EDMO #:230440-3
  • Brand:IDEAL AEROSMITH
  • Category:Bench Test Sets
  • ECCN:7B994
  • ECCN:7B994
  • SCHEDULE B CODE:9031.80.8080
  • SCHEDULE B CODE:9031.80.8080
