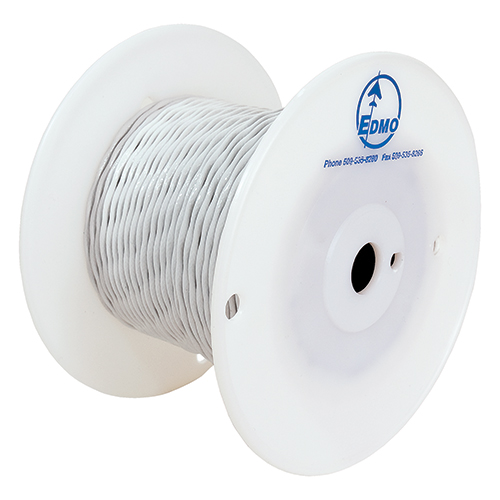

M27500-22TE3T14 Extruded ETFE Tefzel Wire | 22 AWG, 3 Conductor

Product Description

SAE AS22759 wire is a fluoropolymer–insulated, single-conductor wire offering excellent performance for a variety of military aerospace and commercial applications. It has high performance and reliability in severe wind and moisture prone (SWAMP) zones such as engine nacelles as well as areas requiring overload stability, low smoke emission and fire resistance, such as aircraft cabins.

M27500-22TE3T14 meets SAE AS22759/16 specifications and is designed for aerospace applications for commercial and military aircraft. It has a stranded tin-plated, copper conductor, Extruded ETFE dielectric, a rating of 600 volts and 150°C.

This M27500-22TE3T14 extruded ETFE tefzel wire (EDMO# 22TE3T14) has three, tin-plated 22 AWG conductors with extruded ETFE insolation and a 150°C rating. Colored white.

Specifications

• AWG Size:
  22
• Conductor Stranding:
  19/34
• Number of Strands:
  19
• Strand Size:
  34
• Numbers of Conductors:
  3
• Outside Diameter:
  0.0520 in, nominal
• Conductor Material:
  Tin-plated copper
• Insulation Material:
  Extruded Ethylene Tetrafluoroethylene (ETFE)
• Shield:
  Overall braid shield
• Shield Material:
  Tinned copper braid
• Shield Coverage:
  85%
• Jacket Material:
  Extruded Ethylene Tetrafluoroethylene (ETFE)
• Jacket Color:
  White
• Weight Approx:
  19 lb/MFT
• Operating Temperature:
  150°C, maximum
• Voltage:
  600 volts
• NEMA Type:
  WC 27500
• Mil-Spec:
  M27500/16

Product Codes

• Mfr Part No
  M27500-22TE3T14
• MIL SPEC
  M27500-22TE3T14
• ECCN
  EAR99
• MIL SPEC
  M27500-22TE3T14
• SCHEDULE B CODE
  8544.11.0030
