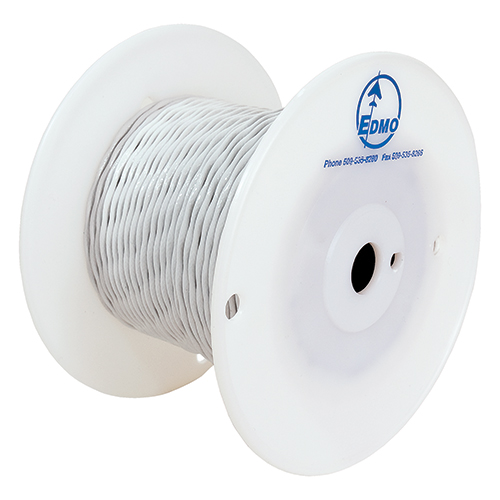

M27500-22TA2N06 PTFE Taped High Temp Wire | 22 AWG, 2 conductor

22TA2N06

EDMO DISTRIBUTORS, INC

CALL FOR PRICING
Available To Order
EDMO#22TA2N06
MFR#M27500-22TA2N06

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

M27500 specification provides for a wide range of construction options allowing for optimal performance in virtually any environment. Any number of design components are available for users to choose from — including conductor size, number of conductors, insulation type, shield material (or no shield), circuit identification, and single or double walled jacket.

SAE AS22759/8 wiring are shielded and jacketed cables with PTFE tape or extruded PFA jackets that surround MIL-W-22759/7 or/8 wires. These component wires are insulated with light-weight mineral filled PTFE, and have silver-plated or nickel-plated copper conductors.

This M27500-22TA2N06 PTFE taped wrapped wire (EDMO# 22TA2N06) has two, 22 AWG, nickel-coated copper conductors and taped PTFE jacket material. Meets Mil-Spec 22759/8 and rated for 260°C and 600 volts.

Features

  • Excellent thermal stability
  • High reliability
  • High break strength and flex life
  • High abrasion resistance
  • 260°C maximum temperature rating
  • 600 volt rating

Specifications

Approx. Weight:
25.7 lb/mft

Number of Conductors:
2

Gauge:
22 AWG

Wire Stranding:
19/34

Shield Diameter:
0.166 in

Jacket Diameter:
0.190 in

Shield Material:
Nickel-coated copper, round, 85% coverage

Jacket Material:
Taped PTFE, white

Temperature:
260°C, maximum

Voltage Rating:
600 V

Inner Conductor Specification:
SAE AS22759/8

Product Codes

  • Mfr Part No:M27500-22TA2N06
  • EDMO #:22TA2N06
  • Brand:EDMO DISTRIBUTORS, INC
  • Category:Wire, Cable & Accessories
