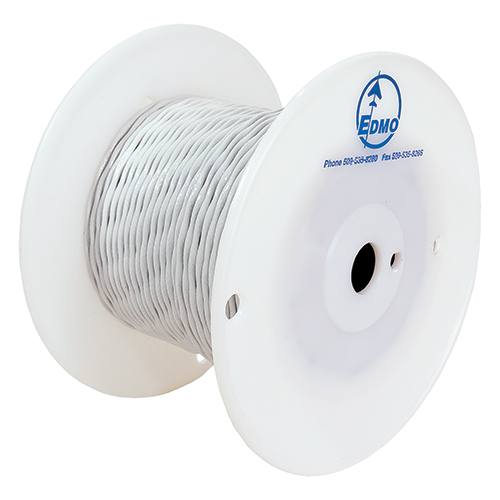

M27500-22SD3T23 Extruded XL-ETFE Tefzel Wire | 22 AWG, 3 Conductor

Product Description

SAE AS22759 wire is a fluoropolymer–insulated, single-conductor wire offering excellent performance for a variety of military aerospace and commercial applications. It has high performance and reliability in severe wind and moisture prone (SWAMP) zones such as engine nacelles as well as areas requiring overload stability, low smoke emission and fire resistance, such as aircraft cabins.

M27500-22SD3T23 meets SAE AS22759/34 specifications with a cross-linked, modified ETFE insolation surrounding an aromatic polyamide braid that provides an EMI/RFI shielding and features a tin-plated, copper conductor with a temperature rating of 150°C — offering both flexibility and durability.

This M27500-22SD3T23 extruded XL-ETFE tefzel wire (EDMO# 22SD3T23) has three, tin-plated 22 AWG conductors with extruded XL-ETFE insolation, a 150°C rating. Colored white.

Specifications

• AWG Size:
  22
• Conductor Stranding:
  19/34
• Number of Strands:
  19
• Strand Size:
  34
• Numbers of Conductors:
  3
• Outside Diameter:
  0.141 (nominal), 0.149 in (maximum)
• Conductor Material:
  Tinned Copper
• Insulation Material:
  Cross-Linked Ethylene Tetrafluoroethylene (XL-ETFE)
• Shield:
  Tinned Copper
• Jacket Material:
  Extruded XL-ETFE
• Jacket Color:
  White
• Weight Approx:
  18.5 lb/MFT
• Operating Temperature:
  150°C, maximum
• Voltage:
  600 volts
• NEMA Type:
  WC 27500
• Mil-Spec:
  M27500

Product Codes

• Mfr Part No
  M27500-22SD3T23
• MIL SPEC
  M27500-22SD3T23
• ECCN
  EAR99
• MIL SPEC
  M27500-22SD3T23
• SCHEDULE B CODE
  8544.11.0030
