TNC CONNECTOR/Male, plug, right angle, 50 Ohms, 11 GHz, silver. For use with RG-142, RG-142A, RG-142B, RG-400.
Product Description

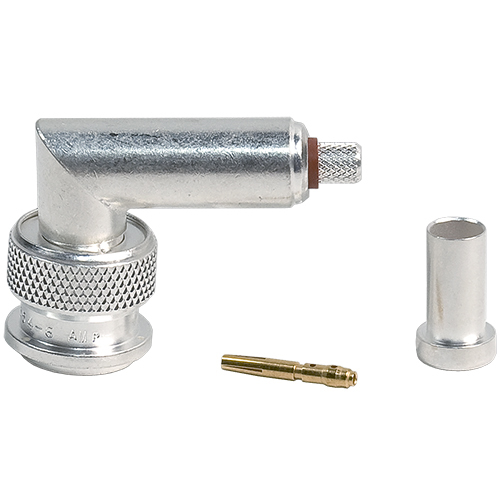

This TNC, right angle, dual crimp connector (EDMO# 225554-6) is for RG 142, RG 142A, and RG 142B coaxial cable.
Features
- Dual crimp, gold plated beryllium copper contacts
- 50Ω impedance
- PTFE dielectric material
Specifications
Dimensions:
16.256 mm (0.64 in) outer diameter
Cable Type:
RG 142, RG 142A, RG 142B
Operating Temperature:
-65°C to 165°C (-85°F to 329°F)
Operating Frequency:
11 GHz
RF Interface:
TNC
Sealable:
no
Port Configuration:
Single Port
Number of Positions:
1
Number of Coaxial Connections:
1
Impedance:
50Ω
Connector Orientation:
right angle
Body Material:
Silver plate, brass
Contact Features:
Dual crimp, gold plated beryllium copper
Dielectric Material:
PTFE
Military Grade
Product Codes
- Mfr Part No:5225554-6
- EDMO #:225554-6
- Brand:TE CONNECTIVITY
- Category:Electrical Interconnect
