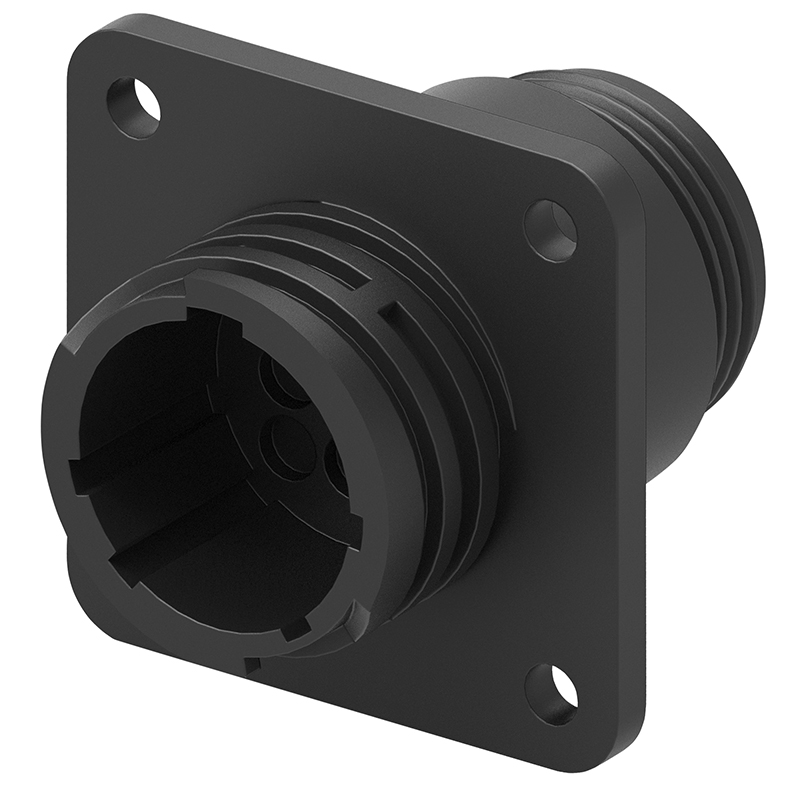

CIRCULAR CONNECTOR/9 position, male, shell size 13, panel mount, UL 94 V-0 flammability rating, thermoplastic material, threaded, straight angle, flange with mounting holes, 3/4-20 thread size. CPC series 1.

206705-1

TE CONNECTIVITY

CALL FOR PRICING
In Stock
EDMO#206705-1
MFR#206705-1

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

These molded plugs and receptacles provide substantial savings in both weight and cost through the use of plastic shells. CPC connectors are available in various shell sizes, densities and configurations.

Features

  • Panel mounting style CPC receptacle
  • Series 1 CPC circular connector
  • Uses Type III+, high current power, Type II and subminiature coax contacts

Specifications

Height:
32.54 mm

Diameter:
20.62 mm

Connector Type:
standard circular connector series 1

Housing Material:
thermoplastic

Mating Style:
threaded

Mounting Angle:
straight

Mounting Style:
panel

Mounting Type:
flanged with mounting holes

Number of Positions:
9 position

Shell Size:
13

Shell Style:
receptacle

Thread Size:
3/4-20

Flammability Rating:
UL 94 V-0

Product Codes

  • Mfr Part No:206705-1
  • EDMO #:206705-1
  • Brand:TE CONNECTIVITY
  • Category:Electrical Interconnect
