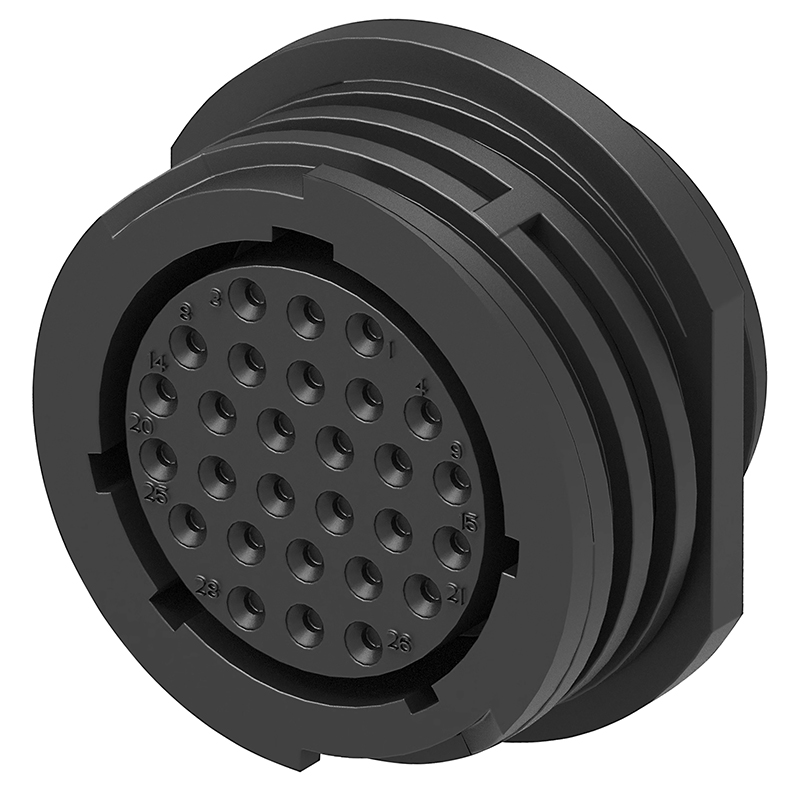

Series 2 CPC Connector Receptacle | Size 17 Shell, 28-Position, Free-hanging, Thermoplastic
Product Description
Series 2 CPC connectors are constructed with thermoplastic material providing a flammability rating of UL 94 V-0.
This circular connector receptacle (EDMO# 206038-2) features a size 17 shell size, 28 contact positions, and a free-hanging style mounting style. Thermoplastic construction.
Features
- Free-Hanging mounting style
- Series 2 CPC circular connector
- Uses type S20 DM & DF crimp Snap-in contacts
Specifications
Height:
36.45 mm
Diameter:
26.67 mm
Connector Type:
standard circular connector series 2
Housing Material:
thermoplastic (TP)
Mating Style:
thread
Mounting Angle:
straight
Mounting Style:
free-hanging
Number of Positions:
28 position
Shell Size:
17
Shell Style:
receptacle
Thread Size:
15/16-20
Flammability Rating:
UV 94 V-0
Product Codes
- Mfr Part No:206038-2
- EDMO #:206038-2
- Brand:TE CONNECTIVITY
