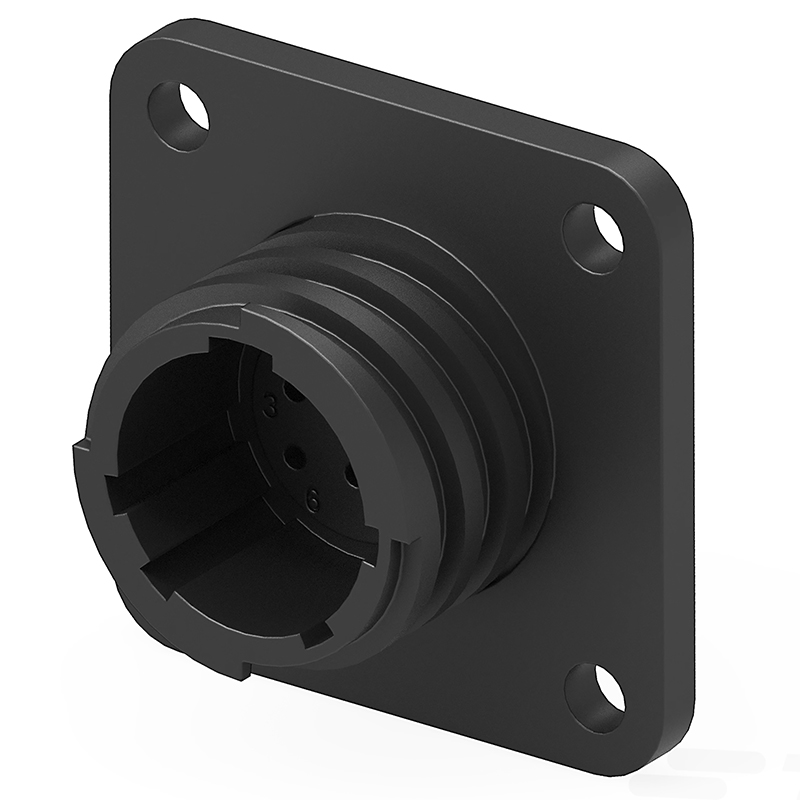

CIRCULAR MOUNT/Standard, Male, 8 position, panel mount, straight angle, flange with mounting holes #2

205841-1

TE CONNECTIVITY

CALL FOR PRICING
In Stock
EDMO#205841-1
MFR#205841-1

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

These molded plugs and receptacles provide substantial savings in both weight and cost through the use of plastic shells. CPC connectors are available in various shell sizes, densities and configurations.

Features

  • Panel mounting style
  • Series 2 CPC circular connector
  • Uses type S20 DM & DF crimp Snap-in contacts

Specifications

Height:
28.57 mm

Diameter:
17.57 mm

Connector Type:
standard circular connector series 2

Housing Material:
thermoplastic

Mating Style:
threaded

Mounting Angle:
straight

Mounting Style:
panel

Mounting Type:
flange with mounting holes

Number of Positions:
8 position

Shell Size:
11

Shell Style:
receptacle

Thread Size:
5/8-24

Flammable Rating:
UL 94 V-0

Product Codes

  • Mfr Part No:205841-1
  • EDMO #:205841-1
  • Brand:TE CONNECTIVITY
