Series 109 AMPLIMITE Military Subminiature D Connectors | Size 2 Shell, 15 Pin, Female
Product Description
Series 109 AMPLIMITE Military Subminiature D Connectors provide a wide choice of contact positions (9, 15, 25, 37 and 50) and they are intermateable with any size 20 subminiature D connector dimensionally complying with MIL-C-24308. Constructed with a steel shell and zinc plating.

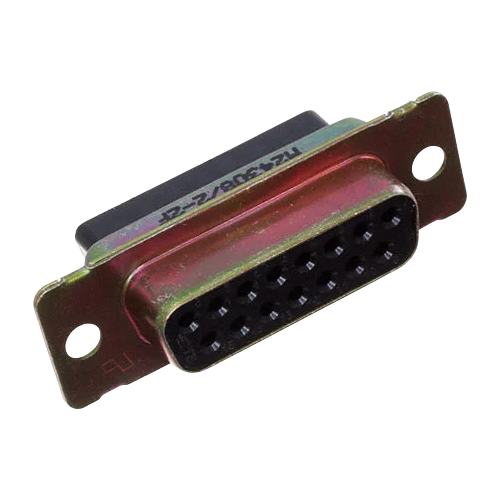

This Series 109 D-Sub connector (EDMO# 205557-2) features a size 2 shell and 15 pins.
Specifications
Shell Size:
2
Number of Positions:
15
Contact Size:
Size 20
Contact Type:
Socket
Contact Current Rating:
7.5 A
Connector & Housing Type:
Receptacle
Connector System:
Cable-to-Cable
Sealable:
No
Power/Signal/Coax Combination:
No
Termination Method:
Crimp
Mounting Type:
Panel Mount
Operating Temperature:
-67ºF to 257ºF (-55ºC to 125ºC)
Shell Material:
Steel
Shell Plating:
Cadmium
Mating Retention Feature Material:
Stainless Steel
Contact Material:
Leaded Nickel Copper
Contact Plating:
Gold
Product Codes
- Mfr Part No:205557-2
- EDMO #:205557-2
- Brand:TE CONNECTIVITY
- Category:Electrical Interconnect
- ECCN:EAR99
- ECCN:EAR99
- MIL SPEC:M24308/2-2F
- MIL SPEC:M24308/2-2F
- MIL SPEC:M24308/2-2F
- MIL SPEC:M24308/2-2F
- MIL SPEC:M24308/2-2F
- SCHEDULE B CODE:8538.90.8080
- SCHEDULE B CODE:8538.90.8080
