HDP-20 Crimp Snap-In Standard Connector | 37-pin Plug, #4 Shell Size

205210-8 1

Product Description

HDP-20 crimp style snap-in D-sub miniature connectors are offered in a variety of contact positions from 9 to 50 pins. They feature tin or zinc plated shells with or without grounding indents while allowing loading of only the number of contacts being used.

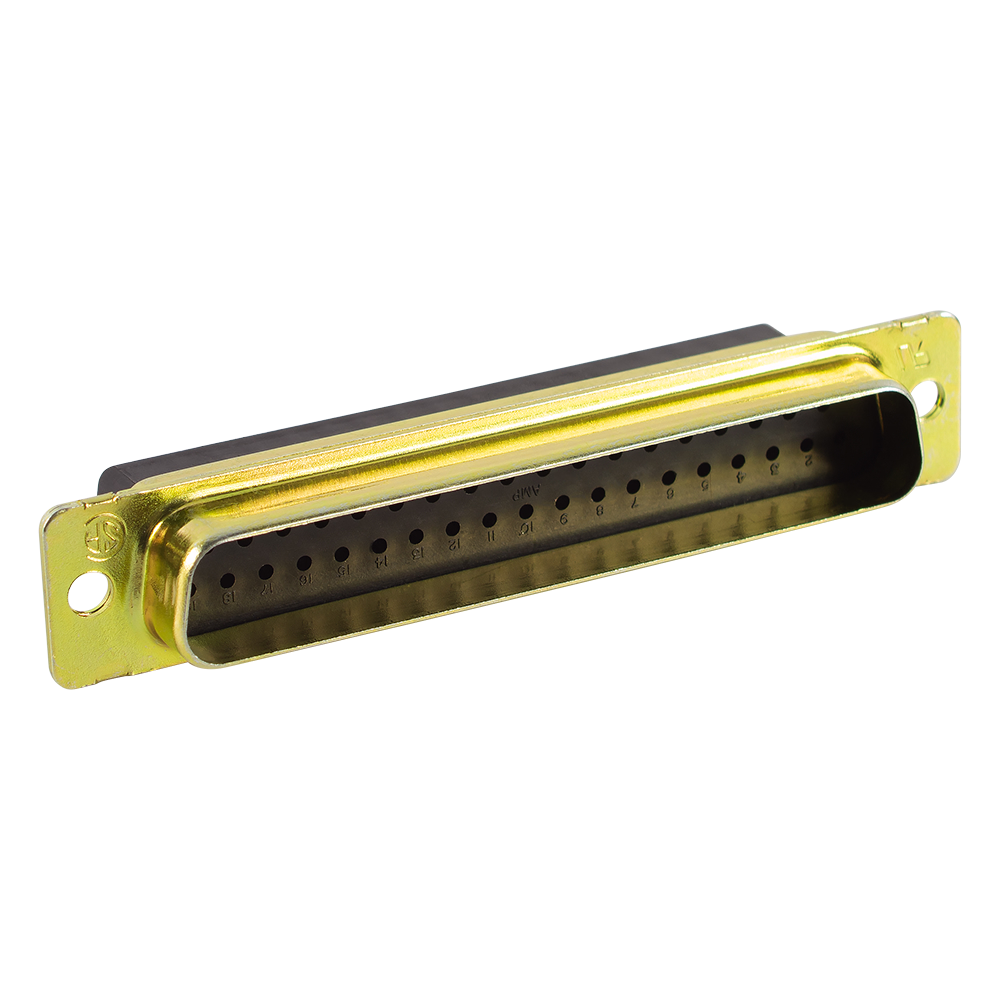

This D-Sub miniature connector (EDMO# 205210-8) features a 37-position connector in a #4 shell size.

Features

Shell sizes available in wide variety of contact positions
Intermatable with any size 20 D-Sub miniature connector conforming to MIL-C-24308
Zinc-plated, steel shell with thermoplastic insert
UL 4V-0 rated

Specifications

Dimensions:
2.729 x 0.494 in

Connector:
Standard D-Sub Connectors

Shell Size:
4(C)

Contact Type:
Pin (male)

Contact Material:
Nylon

Number of Positions:
37, 2-rows

Insert Arrangement:
C37

Mounting Holes:
0.120 in (standard)

Mount Style:
Wire

Shell Material:
Zinc-plated, steel

Termination Style:
Crimp

Product Codes

Mfr Part No:205210-8
EDMO #:205210-8
Brand:TE CONNECTIVITY
Category:Electrical Interconnect
CSA:LR1088108, LR7189-207
CSA:LR1088108, LR7189-207
ECCN:EAR99
ECCN:EAR99
ROHS:YES
ROHS:YES
SCHEDULE B CODE:8536.90.4000
SCHEDULE B CODE:8536.90.4000
UL:E28476, E81956
UL:E28476, E81956
