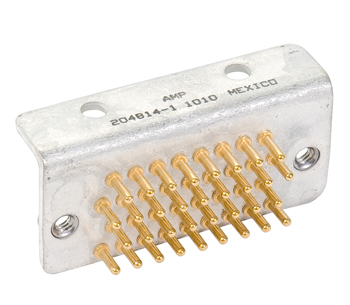

Grounding Block | 34 Position Connector Housing

Product Description

Grounding blocks are ideally suited for aircraft applications where wire is to be grounded to an airframe. The ground wires are crimped to size 16 socket contacts and loaded into a standard 6, 14 or 34 position connector housing. The connector can be mated to the grounding block which is fastened to the aircraft frame.

Specifications

• Dimensions:
  2 x 0.492 x 0.930 in.
• Material and finish:
  Brass, tin plated
• Clinch nuts:
  Stainless steel
• Pin contacts:
  Phosphor bronze, gold over nickel plated

Product Codes

• Mfr Part No
  2048141
• ECCN
  EAR99
• SCHEDULE B CODE
  8536.69.4030
