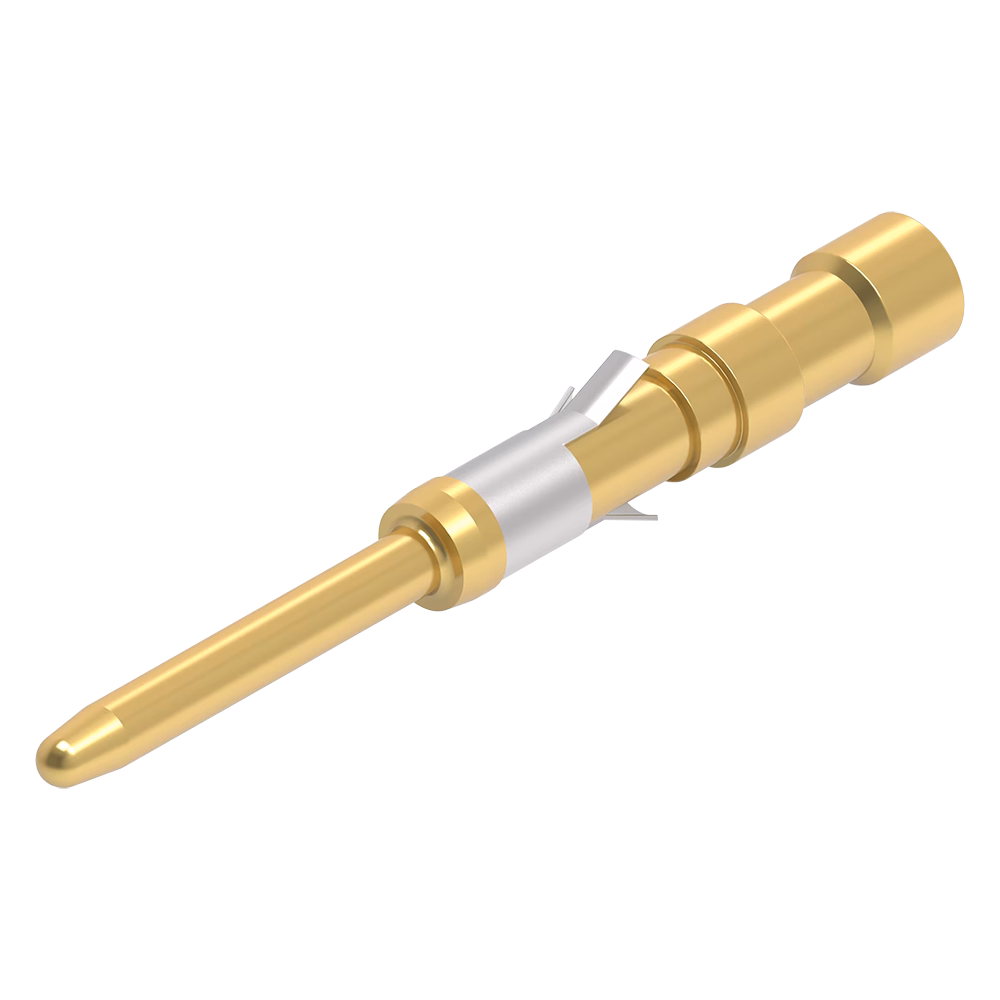

202507-1 Singal Pin Contact | Type II, Screw Machined, Crimp, Size 16, 18–16 AWG

These precision screw-machined, type II, pin and socket singal contacts are used in M Series, Special M Series, “G” Series, Metrimate, Metrimate Drawer, and CPC Series 1 and 4 connectors. Contacts feature high normal force which provides a low resistance in significant applications such as dry circuit signal conditions. Mating entry is closed-ended to prevent damage from stubbing due to misalignment. A stainless-steel spring provides superior normal force and retention in the housing. The contact bodies are machined from solid brass. Single contact current rating is 13 amperes at 30°C Temperature Rise.

This singal contact (EDMO# 202507-1) is a size 16 pin contact for 18–16 AWG wire.
