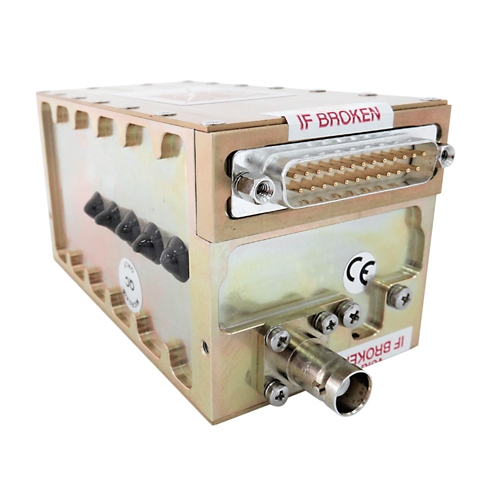

T2000UAV-L Transponder | BNC Connector, Rev 2
Product Description
The T2000UAV-L is designed for use in UAV aircraft for allowing unmanned aerial vehicles to be visible to air traffic controllers. This T2000 transponder for UAV's replies to all Mode A and Mode C interrogations and accepts barometric altitude Grayscale/Gillham code data. The T2000UAV-L is designed for extremely low power consumption for extended operation during battery operation and delivers a 200 watt pulse-out signal. This lightweight and compact unit, weighing only 454 grams, is designed with simple installation in mind.
This T2000UAV-L (EDMO# 20000137) features a BNC connector.
*The T2000UAV-L Mode 3A/C is a special version of the T2000 Transponder, designed for operation in unmanned aircraft. This product is NOT TSO’d due to the OEM nature of the management software.
Features
No product features currently available.
Specifications
Weight:
0.454 kg
Dimensions:
13.4 x 6.1 x 6.1 cm
Transmitter:
1090 MHz ±0.2MHz
200W pulse output
80 ns rise time
120nS fall time
Receiver:
10 dBm to –72 dBm dynamic range
1030 MHz center frequency
±5 MHz pass band @ -3 dB
Input Power:
10 VDC — 33 VDC
100 mA — 150 mA @ 28V
150 mA — 200 mA @ 14V
Operational Modes Standby:
Mode 3A (4096 codes)
Mode 3A/C
Temperature:
-20°C to 55°C
RTCA Compliance:
DO-144
DO-160D
DO-178B Level C
Product Codes
- Mfr Part No:20000137
- EDMO #:20000137
- Brand:MICROAIR
- Category:Transponders, Altitude Encoders & Serializers
