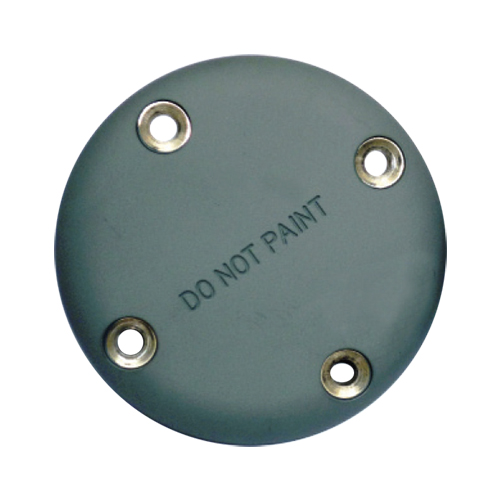

20-41 Series Active GPS Antenna | L1 & L2 Bands
Product Description
The 20-41 Series of active GPS (Global Positioning Satellite Systems) antennas, with integrated Antenna Electronics (AE), are designed to operate in the GPS L1 and L2 bands. The antenna element operates with nominal hemispherical coverage to allow reception of signals from a number of satellites. It consists of a dual micro strip stacked patch radiating element fed by a 90 degree hybrid arrangement giving Right Hand Circular Polarization (RHCP) reception, excellent symmetry and cross-polar performance across the whole bandwidth.
Features
- Low noise AE amplifies signals in the two GPS bands
- Limiter circuit for high power protection
- High performance, thermoplastic shell
- Aluminum enclosure/baseplate
Specifications
Weight:
0.21 kg
Dimensions:
3.5 in. diameter, 0.84 in. height
Frequency ranges:
L1: 1575.42 MHz ± 10.23 MHz
L2: 1227.60 MHz ± 10.23 MHz
Primary power:
4.5 V to 12.5 V
Polarization:
RHCP
Impedance:
50Ω
VSWR:
2.0:1 (≥ 9.5 dB)
Connector:
TNC
Product Codes
- Mfr Part No:20-41-10P79
- EDMO #:20-4110P79
- Brand:CHELTON
- Category:Antennas & Couplers
