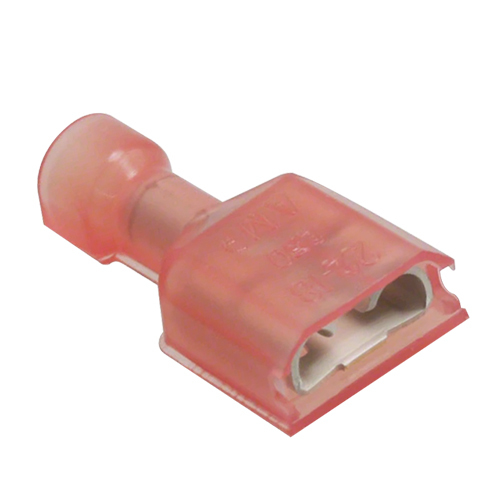

Ultra-Fast 250 Nylon Fully Insulated Receptacle | Red, 22-18AWG
Product Description
The Ultra-Fast FASTON receptacle and tab offers the advantage of a completely protected terminal. The fully insulated crimp termination ensures electromechanical performance. The user-friendly design combines easy mating with rounded corners eliminating exposed leads.
Features
- Fully insulated
- Correct lead-in tab design
- Funnel wire entry
- Wire stop
- Transparent insulation
- Visual inspection of crimp and wire brush
- Color-coded
- Marked with sizing
Specifications
Wire size:
22-18 awg
Mating tab width:
0.25 in.
Mating tab thickness:
0.032 in.
Overall length:
0.855 in.
Mating retention type:
Dimple
Terminal orientation:
Straight
Contact base material:
Brass
Plating material:
Tin
Insulation material:
Nylon
Crimp type:
F-Crimp
Barrel type:
Closed
Terminal type:
Tab
Voltage:
600V max
Product Codes
- Mfr Part No:2-520184-2
- EDMO #:2-520184-2
- Brand:TYCO
- Category:Electrical Interconnect
