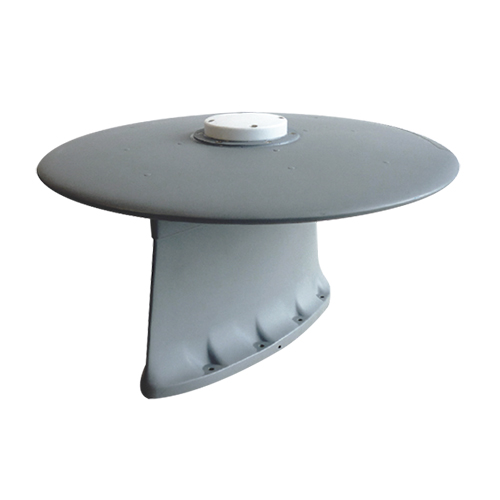

19-450 UHF & GPS SatCOM Antenna | 240-400MHz, L1-L2


CHELTON

CALL FOR PRICING
Available To Order
EDMO#1945010NP3
MFR#19-450-10NP3

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

The 19-450 UHF and GPS SatCOM Antenna is a combined UHF satellite communications and Global Positioning System (GPS) antenna. The antenna is low profile in construction and intended for airborne applications. The UHF section provides essentially hemispherical satellite communications coverage. The GPS section provides nominal hemispherical coverage in the GPS L1 and L2 frequency bands to allow reception of microwave signals from a number of satellites.

Features

  • Combined UHF and GPS antenna
  • Low profile
  • RHCP and vertically polarized
  • One-piece vertical shell
  • Circular fiberglass horizontal molding
  • Aluminum alloy base

Specifications

Weight:
8.8 lb

Dimensions:
15.9W x 9H in.

UHF

Frequency:
240 MHz - 400 MHz

Power rating:
200W max

Impedance:
50Ω

VSWR:
Low Angle: 2.5:1 max
High Angle: 2.0:1 max

Connector:
N type female

GPS SatCOM

Frequency:
L1 band: 1565 MHz - 1586 MHz
L2 band: 1217 MHz - 1238 MHz

Polarization:
RHCP

Impedance:
50Ω

VSWR:
2.0:1 max

Connector:
TNC type female

Product Codes

  • Mfr Part No:19-450-10NP3
  • EDMO #:1945010NP3
  • Brand:CHELTON
  • Category:Antennas & Couplers
