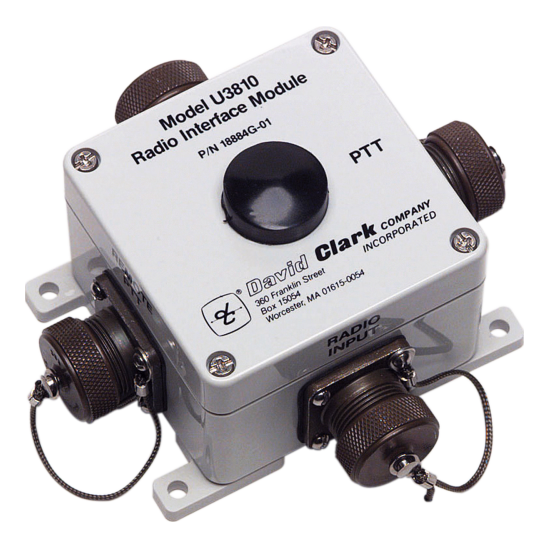

U3810 Radio Interface Module
Product Description
The U3810 adds the transmit and receive functions of a mobile radio to the Series 3800 Intercom System. Use of this module is recommended for two- or three-person systems only, as all intercom users will transmit over the radio while the PTT is depressed. It is a simple method of adding radio interface capability to systems where users are within close proximity to each other and are capable of sharing the PTT transmit switch.
Features
Adds radio transmit and receive to entire Series 3800 intercom system
Recommended only for systems of 2-3 users maximum, situated within close-proximity and capable of sharing a radio PTT switch
1 each Radio Input connector, MS-type (6-socket), with weather protective cap
1 each System Input connector, MS-type (4-socket), with weather protective cap
2 each optional Remote PTT connectors, MS-type (2-pin), with weather protective cap
Surface mount installation kit included
Durable, weather-resistant enclosure
Quality materials, components and craftsmanship
Rugged and reliable
Specifications
Weight:
14.8 oz (420 g)
Dimensions:
6.75 x 5.25 x 2.375 in
Power Requirements:
12 or 24 VDC
Enclosure:
Heavy-gauge polycarbonate (-80° to +212°F)
Radio Input Connection:
1 each, via C3821 Radio Interface Cord
System Input Connection:
1 each, via C38-xx Jumper Cord
Remote PTT Connection:
1 each, via 2-conductor cord and 2-socket MS-type connector
Installation:
Surface mount (mounting kit included)
Product Codes
- Mfr Part No:18884G-01
- EDMO #:18884G-01
- Brand:DAVID CLARK COMPANY
- Category:Headsets & Intercoms
- ECCN:EAR99
- SCHEDULE B CODE:8518.30.2000
