1811D Pitot Static Test Set | 1811D-403
Product Description

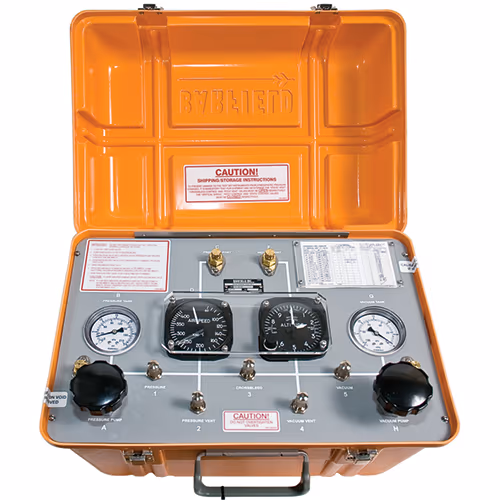

The Barfield 1811D is a, portable, self-contained field tester. It is ideal for leak testing aircraft pitot and static systems or on-board testing of altimeters and airspeed indicators. The tester uses two analog or digital instruments (Altimeter and Airspeed) to perform aircraft leak tests or instrument calibration checks. All legacy 1811 series testers are configured with hand pumps and external pressure ports for supplying the necessary pressure and vacuum needed for on-board testing.
Version 1811D-403 has an operating range of 60-420 kts and 50k feet.
Features
Test set includes:
- (2) 25-ft hoses
- (1) Pitot mast adapter
- (1) 2423F static port adapter kit
Features:
- Ideal for flightline calibration checks and troubleshooting
- Performs precision Pitot-Static leak tests
- Two-instrument combination with optional ranges
- Correction cards for all analog instruments
- Fully portable and self-contained (No electric or external pressure sources needed)
- Lightweight plastic case for portability
- Analog instruments contain two indications (altitude, airspeed)
Specifications
Weight:
18 lb
Dimensions:
18 x 12 x 11.3 in.
Operating temperature range:
0ºC to 50ºC
Pneumatic connections:
Pitot, static
Gauges:
Altimeter, airspeed
Product Codes
- Mfr Part No:101-00164-403
- EDMO #:1811D-403
- Brand:BARFIELD
- Category:Air Data & Pitot Static Test Sets
- ECCN:7B994
- SCHEDULE B CODE:9026200000
- SIN:334515
