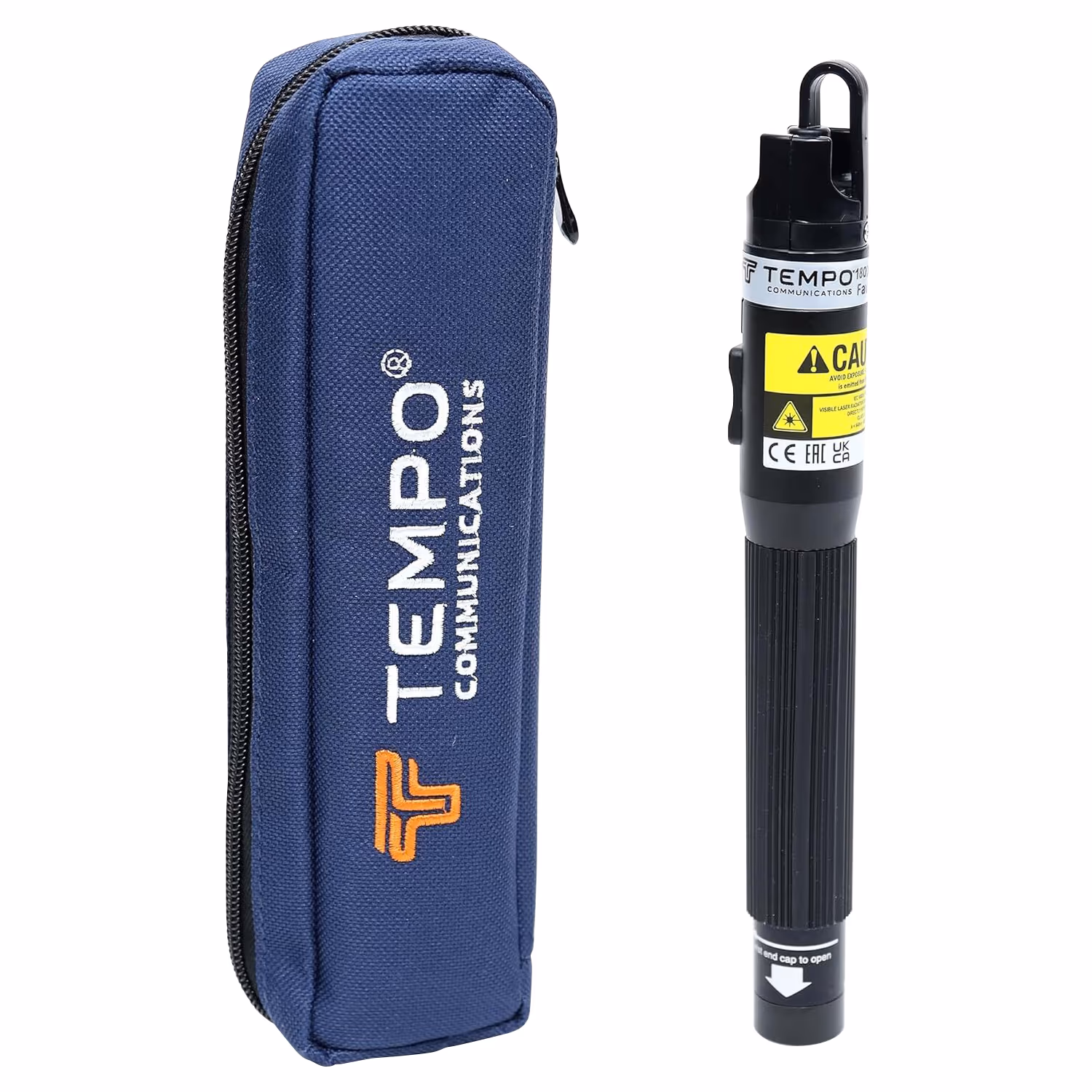

180XL Visual Fault Locator Kit
Product Description
The 180XL visual fault locator allows the technician to quickly and safely visually locate broken and pinched fibers, faulty connectors, and bad splices. The long reach of the 180XL allows the technician to safely confirm fiber continuity.
This 180XL visual fault locator kit (EDMO# 180XL-C) includes a ceramic sleeve.
Features
- Visual fault locating
- Confirm fiber continuity
- Allows the technician to quickly locate faults without the use of more expensive equipment
- Class 2 designation provides safe light levels for the technician
- 5km distance
- Universal 2.5mm bulkhead
- Optional 1.25mm adapter available
- Class 2 certification, 1 mW maximum output power
- Compatible with Singlemode and Multimode fibers
- 2Hz modulation mode
Specifications
Weight:
0.26 lbs (120 g)
Dimensions:
7.08 x 0.91 in (180 x 23 mm)
Wavelength:
650 nm ± 10 nm
Output Power:
700µW (typical), 1 mW (max)
Laser Classification:
Class 2
Modes:
CW and 2Hz Modulation
Display:
Red/Green LED
Fiber Type:
Singlenode, Multinode
Connector Interface:
2.5 mm Universal, Optional 1.25 mm adapter
Battery:
AA (2 Included)
Battery Life:
80 hr (w/ 3.9 Wh batteries)
Operating Temperature:
-10ºC to 45ºC
Storage Temperture:
-40ºC to 70ºC
Maximum Distance:
5 km
Product Codes
- Mfr Part No:55505341
- EDMO #:180XL-C
- Brand:TEMPO COMMUNICATIONS
- Category:Fiber Optic Inspection
- SCHEDULE B CODE:9030.40.0000
