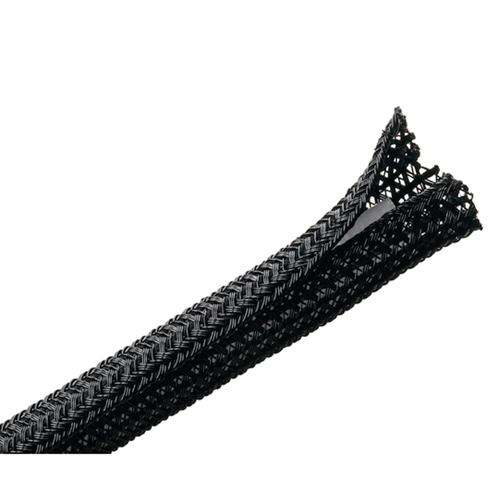

Split Wrap Braided Sleeving | 0.5in Ø, Black, 75ft Reel
Product Description
Split wrap braided sleeving is a lateral, semi-rigid braided sleeving configured for ease of installation and allows repeated access to the wire bundle when required. The lateral split allows the sleeving to open and accommodate a variety of bundling requirements. The 25% edge overlap rolls back over connectors and splices without exposing the bundled wires.
This Split wrap braided sleeving (EDMO# 170-03024) has a 1/2 inch diameter and colored black. Ships on a 75-foot reel.
Features
- Center-slit overlapping design allows quick and easy access to the wires and cables for maintenance and inspection
- Flexible material allows easy wrap around a variety of component shapes and sizes, making it simple to use
- Unique woven pattern provides increased coverage and greater resistance to abrasion, dust and debris
- Overlapping design enhances flexibility without exposing wire and cables
Specifications
Length:
75.0 ft (22.9 m)
Bundle Diameter:
0.1 in (2.54 mm), min.
Bundle Diameter:
0.5 in (12.7 mm), max.
Diameter:
0.50 in (12.7 mm)
Wall Thickness:
0.025 in (0.64 mm)
Material:
Polyester (PET)
Material Shortcut:
PET
Flammability:
UL 94 V-0
Halogen Free:
Yes
UV Resistant (Yes/No):
Yes
Use Conditions:
For Indoor and Outdoor Use
Operating Temperature:
-94°F to +257°F (-70°C to +125°C)
Reach Compliant (Article 33):
Yes
ROHS Compliant:
Yes
UL Recognized (US):
Yes
Product Codes
- Mfr Part No:170-03024
- EDMO #:170-03024
- Brand:HELLERMANNTYTON
- Category:Wire, Cable & Accessories
