15TC30 Series Circuit Breaker | 50 Amp Rating
Product Description

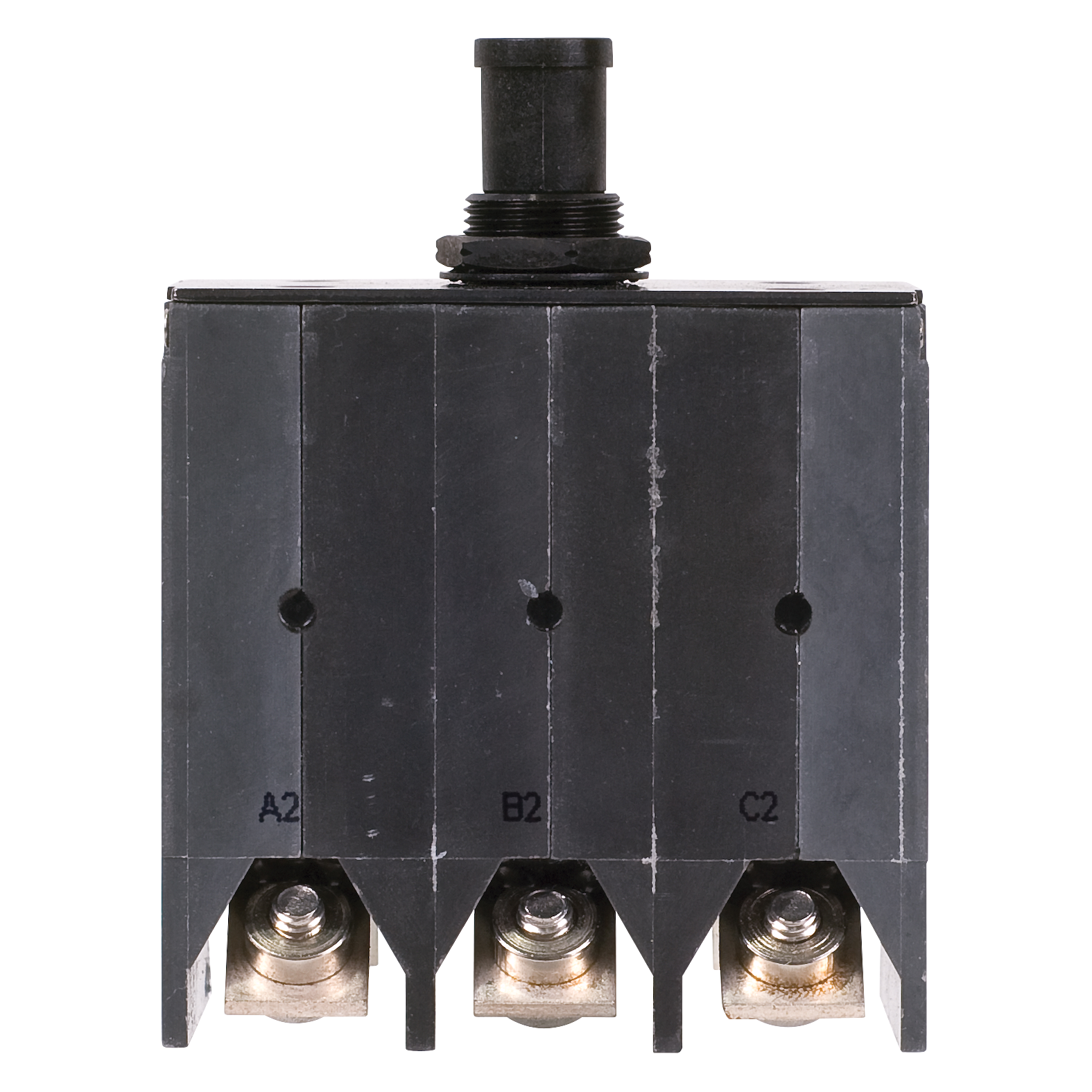

The KLIXON® 15TC30 series circuit breaker was designed to meet the package size and performance requirements of inactive military standard MS90351 in the 20 to 50 amp range. This lightweight, three-phase, high performance, non-ambient temperature compensated circuit breaker is well suited for aircraft, avionics and electrical systems. The 15TC30 series features a trip-free design, which will trip open on an overload, even when manually held closed.
This 15TC30 series circuit breaker (EDMO# 15TC30-50) is rated for 50 amps.
Includes hardware.
Features
Light weight
Non-ambient compensated
Three–phase
Trip–free design
Current rating: 20 to 50 amps
High performance
Typical use: Aircraft, avionics and electronic systems
Specifications
Weight:
0.386 lb (175 g), maximum
0.287 lb (130 g), nominal
Dimensions:
55 x 34 x 54 mm, maximum
Current Rating:
50 amps
Vibration:
CURVE 'J' OF EUROCAE ED-14B, 3 G'S, 2000 HZ
Mechanical Shock:
50G
Corrosion:
Salt spray 48 hours
Humidity:
48 hours
Endurance:
2500 cycles: 115 VAC, 400 Hz inductive
5000 cycles: mechanical, no load
Product Codes
- Mfr Part No:15TC30-50
- EDMO #:15TC30-50
- Brand:KLIXON
- Category:Electrical Interconnect
