BatteryMINDer Charger | With SmarTECHnology, 12 V, 1.5A
Product Description

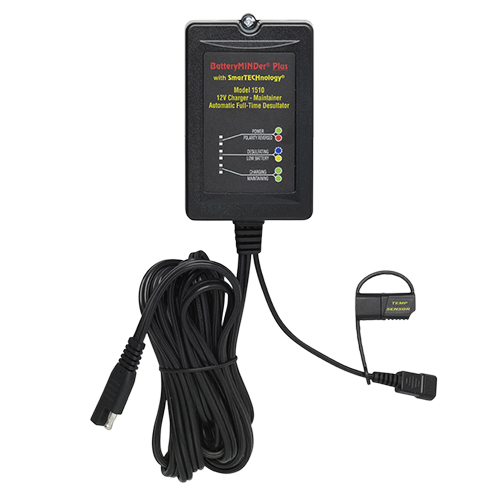

The BatteryMINDer Model 1510 features a SmarTECHnolgy plug-n-run 1.5 amp battery charger/maintainer with a full-time, automatic high frequency pulse desulfator that extends a batterys life up to four times its normal life. The Model 1510 is ideal for charging, maintaining, and recovering of 12-volt flooded, sealed, maintenance-free, starter, deep-cycle, Optima brand sealed AGM, and marine batteries. This unit has a wide 90-240 VAC and 47-63 Hz input voltage range allowing it to operate worldwide. It is also capable of maintaining up to four batteries at a time (6 or 12 volt connected in parallel) by using the optional SmarTECHnology Y-connector, or a customer supplied 18-gauge insulted wire.
Part (EDMO# 1510-12) includes the Model 1510 charger/maintainer/desulfator, ring terminal assembly with quick connector, insulated battery clips, ambient temperature sensor (installed), 12-foot power cord, and optional permanent mounting tab.
Features
- Works with all types sizes, types, and brands of 12V flooded (filler cap) and sealed maintenance free batteries
- Includes ambient temperature sensor (installed), 12 ft power cord, battery clip cord set with quick connector, and optional permanent mounting tab
- Ambient temperature sensor ensures the battery will not over- or undercharge regardless of extreme temperatures
- Extends battery life up to four times
- Maintains up to four batteries at a time (6 or 12 volt connected in parallel); requires optional Y-adaptor
- Wide input voltage range from 90-240 VAC and 47-63 Hz allows users to use the Model 1510 worldwide
- Recovers weak batteries
- Automatic, full-time, high frequency pulse type desulfation
- Reverse polarity, short circuit, and over-temperature protection
- Ideal use with flooded, sealed, maintenance-free, starter, deep-cycle, Optima brand sealed AGM, and marine batteries (not for use with aviation batteries)
- FCC certified and Energy Star rated
Specifications
Weight:
<1 lb
Dimensions:
3.9 x 2.55 x 1.18 in
Voltage:
12V
Charging Current:
1.5 A
Power Source:
90 - 240 VAC @ 47 - 63 Hz
Temperature Compensation:
Yes, -4°F to 122°F (-12°C to 50°C)
Operating Temperature:
14°F to 104°F (-10°C to 40°C)
Storage Temperature:
-13°F to 185°F (-25°C to 85°C)
Operating Humidity:
0 to 90% relative humidity
Overcharge Protection:
Yes
Polarity Reversal Protection:
Yes
Multiple Batteries (#):
4
Safety Standards:
Complies with the requirements of the Standard(s) for Battery Chargers (UL-1236) and is identified with the ETL Listed Mark
EMC Standard:
FCC part 15
Input-Output insulation test:
1,240 VAC @ 60Hz 5 mAAC, no breakdown
Product Codes
- Mfr Part No:1510
- EDMO #:1510-12
- Brand:BATTERYMINDER
- Category:Ground Support Equipment
