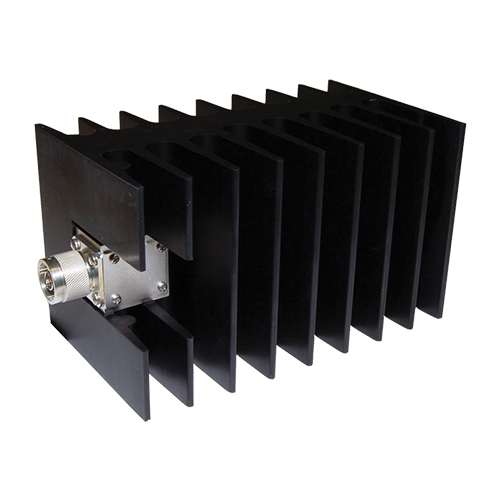

150 Watt RF Termination | Convection Cooled, Female N Connector

150-ST-FN

BIRD ELECTRONICS

CALL FOR PRICING
Out of Stock
EDMO#150-ST-FN
MFR#150-ST-FN

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

Bird 150-Watt loads provide dependable power absorption for RF systems where compact size and rugged construction are essential. Ideal for transmitter testing, load substitution, and system maintenance, these convection-cooled loads deliver low VSWR and consistent performance across a broad range of mid-to-high power RF applications.

Features

  • Self cooling design, needs no cooling plate
  • Frequencies up to 18 GHz
  • Load requires no AC power
  • Rugged construction
  • Broadband operation

Specifications

Weight:
5.0 lb (2.3 kg)

Dimensions:
8.1 x 4.0 x 4.0 in (206 x 102 x 102 mm)

Finish:
Black Anodized Aluminum

Power Rating:
150 W

Frequency Range & VSWR:
DC to 1 GHz @ 1.15:1 (max), 1 to 3 GHz @ 1.25:1 (max)

Impedance:
50 Ohms, nominal

Connector:
N-Type Female Connector

Cooling:
Convection-Cooled

Compliance:
RoHS

Ambient Temperature:
-40°F to 104°F (-40°C to 40°C)

Humidity:
95% (Non-condensing)

Product Codes

  • Mfr Part No:150-ST-FN
  • EDMO #:150-ST-FN
  • Brand:BIRD ELECTRONICS
  • Category:Wire & Cable Testers
