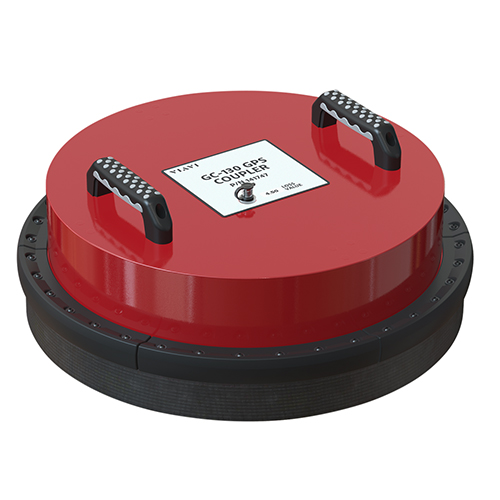

GC-130 GPS Antenna Coupler Kit
Product Description
The GC-130 GPS antenna coupler is designed for use with the GPSG-1000 GPS Simulator to provide greater than 20 decibels of antenna isolation ensuring other aircraft GPS signals are not seen the GPS receiver when simulated GPS signals are being generated.
Features
Kit includes:
- GC-130 GPS antenna coupler
- Rigged antenna case
- 20-feet coax cable with TNC connectors
Features:
- Provides reliable simulation in hangers and other low coverage areas
- Greater than 20 decibels of antenna isolation
- Less than 1 decibel repeatability
- Fits antennas up to 14 inches in diameter
- Rugged design for ramp tests
Specifications
Weight:
8 lb (3.6 kg)
Dimensions:
24.9 x 23.7 x 13.1 in
height:
7.6 in
Coupler Diameter:
20.0 in (50.8 cm)
Transit Case:
63.25 x 60.2 x 33.27 cm
General Frequency:
1575.42 MHz (L1/L1C/E1)
Return Loss:
>12.0 dB at both the antenna under test input and coupler input
Insertion Loss:
8.1 dB +0.5 dB
Repeatability:
<1 dB
Isolation:
>20 dB
Connector:
TNC Female
Product Codes
- Mfr Part No:141193
- EDMO #:141193
- Brand:VIAVI
